Circuit Diagram - PCM A/T Control System

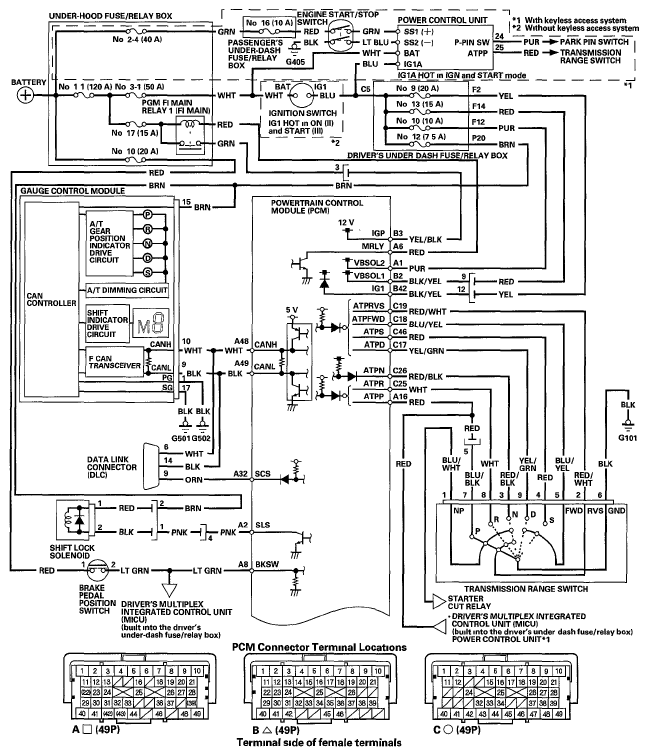

Fig 1: PCM A/T Control System - Circuit Diagram (1 Of 2)
G05990642Courtesy of AMERICAN HONDA MOTOR CO., INC.

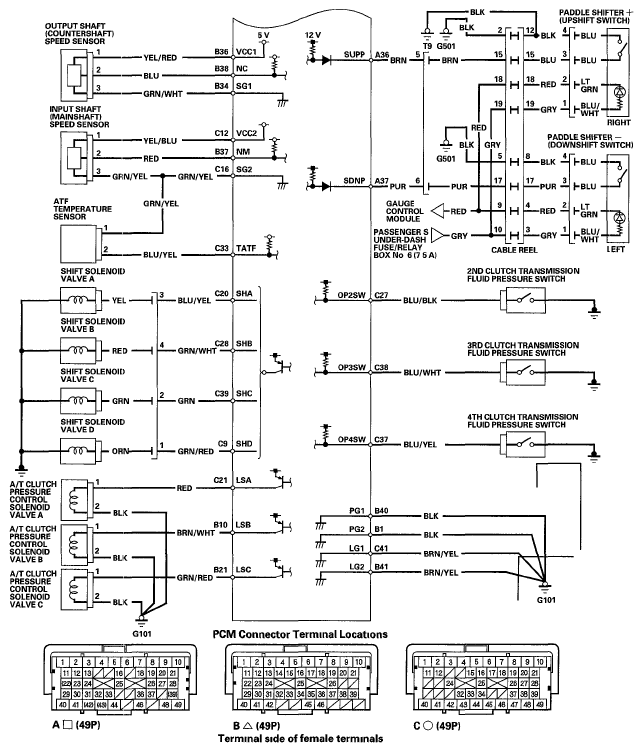

Fig 2: PCM A/T Control System - Circuit Diagram (2 Of 2)
G05990643Courtesy of AMERICAN HONDA MOTOR CO., INC.
