Transfer Assembly Removal

Raise the vehicle an a lift, and make sure it is supported securely
Move the shift lever to N
Remove the drain plug (A), and drain the automatic transmission fluid (ATF)

Fig 1: Drain Plug With Sealing Washer With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reinstall the drain plug with a new sealing washer (B)
Remove the front subframe stiffener

Fig 2: Identifying Front Subframe Stiffener
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the exhaust pipe A

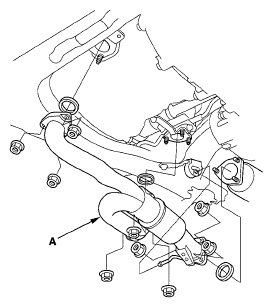

Fig 3: Identifying Exhaust Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolt securing the transfer breather hose bracket (A), and disconnect the breather hose (B) from the breather pipe (C) on the transfer assembly

Fig 4: Identifying Transfer Breather Hose Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Make a reference mark (A) across the No 1 propeller shaft (B) and the transfer companion flange (C)

Fig 5: Identifying No 1 Propeller Shaft Mark Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Separate the No 1 propeller shaft from the transfer companion flange
Remove the transfer assembly (A) and the dowel pin (B) from the transmission

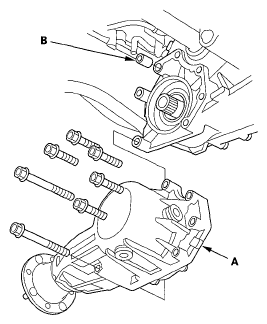

Fig 6: Identifying Transfer Assembly And Dowel Pin
Courtesy of AMERICAN HONDA MOTOR CO., INC.
