Transfer Assembly: Inspection

NOTE: To prevent damage to the transfer housing, always use soft jaws or equivalent materials between the transfer housing and a vise

Transfer Gear Backlash Measurement

Set a dial indicator (A) on the transfer companion flange (B), position the dial indicator tip (C) on the top of the bolt (D).

Fig 1: Measuring Transfer Gear Backlash
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the transfer gear backlash
Standard 0 06-0 16 mm (0 002-0 006 in)

Total Starting Torque Measurement
Secure the transfer housing (A) in a bench vise (B) with soft jaws

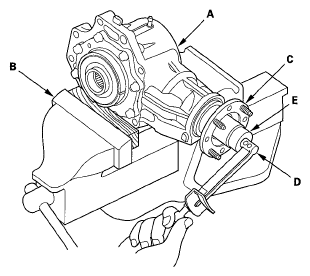

Fig 2: Measuring Starting Torque Companion Flange
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Rotate the transfer companion flange several times to seat the tapered roller bearings.
Measure the starting torque at the companion flange (C) using a torque wrench (D) and a socket (E)
Standard 2 74-4 64 N m

(28 0-47 4 kgf cm, 24.3-41 1 lbf in)
If the starting torque is out of standard, disassemble the transfer assembly, and repair it
