Tightening Specifications

Connecting Rod Bolts

Inspection

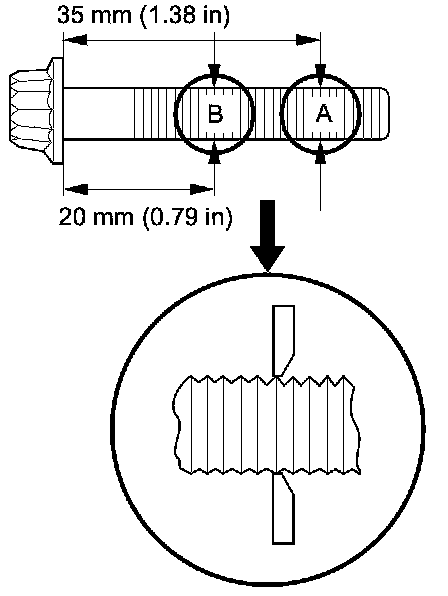

Measure bolt diameter at Point A and Point B.





Calculate difference in diameter between Point A and Point B.

Point A-Point B 0-0.1 mm (0-0.004 in)

Install a new bolt if the difference in diameter is out of tolerance.

Tightening Sequence
First step 20 Nm (2.0 kg-m, 15 lb-ft)
Final step Tighten 90°
