Power Tilt/Telescopic Steering Control Unit Input Test
NOTE:
Before troubleshooting the DPMS, troubleshoot the multiplex integrated control system first using B-CAN System Diagnosis Test Mode A (see
TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A
).
- Turn the ignition switch to LOCK (0).
- Remove the steering column cover (see COLUMN COVER REMOVAL/INSTALLATION ).

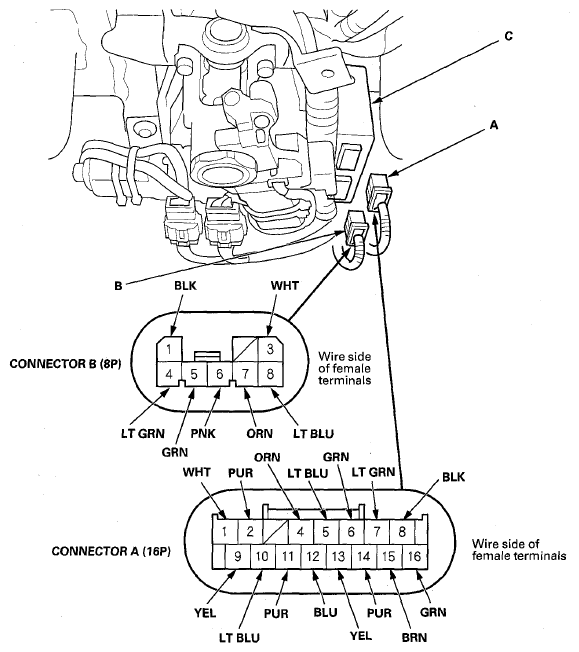

- Disconnect 16P connector (A) and 8P connector (B) from the power tilt/telescopic steering control unit (C).
- Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 5.
- Reconnect the connectors to the power tilt/telescopic steering control unit, and do the following input tests:
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the control unit must be faulty; replace it.
| Cavity | Wire | Test condition | Test: Desired result | Possible cause if desired result is not obtained |
|---|---|---|---|---|
| A8 | BLK | In all ignition switch positions | Measure the voltage to ground: There should be less than 0.2 V. |
|
| B1 | ||||
| A1 | WHT | Under all conditions | Measure the voltage to ground: There should be battery voltage. |
|
| A9 | YEL | Ignition switch ON (II) | Measure the voltage to ground: There should be battery voltage. |
|
| B3 | WHT | Under all conditions | Measure the voltage to ground: There should be battery voltage. |
|
| B5 | GRN | Under all conditions | Measure the voltage to ground: There should be battery voltage. |
|
| A6 . A15 |
GRN . BRN |
TELESCOPIC switch in RETRACT | Measure the voltage between the terminals: There should be less than 0.2 V. |
|
| A10 . A14 |
LT BLU . PUR |
TELESCOPIC switch in RETRACT | Measure the voltage between the terminals: There should be less than 0.2 V. |
|
| A14 . A15 |
PUR . BRN |
TELESCOPIC switch in EXTEND | Measure the voltage between the terminals: There should be less than 0.2 V. |
|
| A6 . A10 |
GRN . LT BLU |
TELESCOPIC switch in EXTEND | Measure the voltage between the terminals: There should be less than 0.2 V. |
|
| A7 . A15 |
GRN . BRN |
TILT switch in UP position | Measure the voltage between the terminals: There should be less than 0.2 V. |
|
| A6 . A10 |
GRN . LT BLU |
TILT switch in UP position | Measure the voltage between the terminals: There should be less than 0.2 V. |
|
| A7 . A10 |
GRN . LT BLU |
TILT switch in DOWN position | Measure the voltage between the terminals: There should be less than 0.2 V. |
|
| A6 . A15 |
GRN . BRN |
TILT switch in DOWN position | Measure the voltage between the terminals: There should be less than 0.2 V. |
|
