Power Tilt/Telescopic Steering Switch Test/Replacement

  1. Remove the steering column covers (see COLUMN COVER REMOVAL/INSTALLATION ).
  2. Disconnect the 13P connector (A) from the power tilt/telescopic steering switch (B).

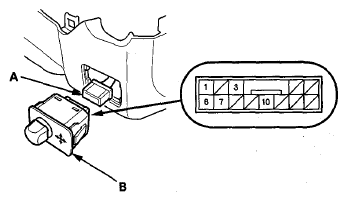

    Fig 1: Identifying 13P Connector And Power Tilt/Telescopic Steering Switch
    G08053985Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the table.

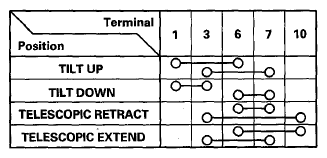

    Fig 2: Power Tilt/Telescopic Steering Switch Continuity Reference Chart
    G08053986Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, replace the switch.
