Power Window Master Switch Replacement

  1. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ), and disconnect the 14P connector from the power window master switch.
  2. Remove the power window switch panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  3. Remove the four mounting screws and the power window master switch (A).

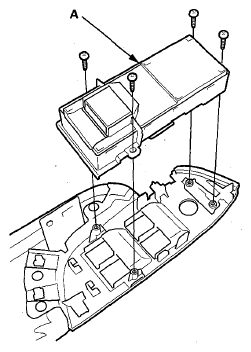

    Fig 1: Identifying 14P Connector On Power Window Master Switch
    G08055430Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the switch in the reverse order of removal.
  5. Reset the power window control unit
