VSA Modulator-control Unit Inputs and Outputs for 46P Connector

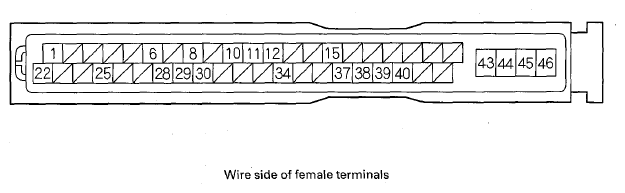

Fig 1: Identifying VSA Modulator-Control Unit Inputs And Outputs 46P Connector Terminals
G08053103Courtesy of AMERICAN HONDA MOTOR CO., INC.
Terminal number Wire color Terminal sign Description Measurement (Disconnect the VSA modulator-control unit 46P connector)
Terminals Conditions Results
1 PNK F-CAN B L F-CAN communication circuit -- -- --
6 ORN BRK DIAG Detects brake light relay 6-GND Trailer stability assist brake operated or brake pedal pressed Battery voltage (about 12 V)
8 GRY RR-GND Detects right-rear wheel speed sensor signal -- -- --
10 RED RL-GND Detects left-rear wheel speed sensor signal -- -- --
11 YEL RL+B Detects left-rear wheel speed sensor signal -- -- --
12 ORN FL+B Detects left-front wheel speed sensor signal -- -- --
15 ORN K-LINE Communicates with HDS -- -- --
22 PUR F-CAN B H F-CAN communication circuit -- -- --
25 GRY WEN Detects write enable signal -- -- --
28 PNK FR-GND Detects right-front wheel speed sensor signal -- -- --
29 GRN FR+B Detects right-front wheel speed sensor signal -- -- --
30 LT BLU RR+B Detects right-rear wheel speed sensor signal -- -- --
34 GRY FL-GND Detects left-front wheel speed sensor signal -- -- --

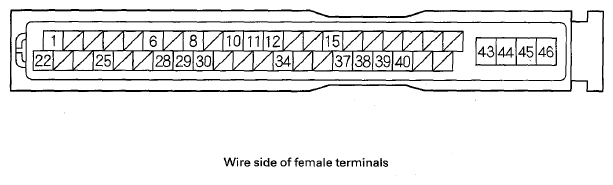

Fig 2: Identifying VSA Modulator-Control Unit Inputs And Outputs 46P Connector Terminals
G08053104Courtesy of AMERICAN HONDA MOTOR CO., INC.
Terminal number Wire color Terminal sign Description Measurement (Disconnect the VSA modulator-control unit 46P connector)
Terminals Conditions Results
37 YEL BRK LAMP Drives the brake light relay 37-GND Ignition switch to ON (II) Battery voltage (about 12 V)
38 RED F-CAN A L F-CAN communication circuit -- -- --
39 WHT F-CAN A H F-CAN communication circuit -- -- --
40 ORN IG1 Power source for activating the system 40-GND Ignition switch to ON (II) Battery voltage (about 12 V)
43 BRN GND2 Ground for the VSA modulator-control unit 43-GND At all times Continuity to ground
44 LT GRN + B SOL Power source for the valve relay 44-GND At all times Battery voltage (about 12 V)
45 RED + B MOT Power source for the motor relay 45-GND At all times Battery voltage (about 12 V)
46 BLK GND1 Ground for the pump motor 46-GND At all times Continuity to ground
