VSA Modulator-Control Unit Removal and Installation: Removal

Turn the ignition switch to LOCK (0).
Remove the air cleaner box (see AIR CLEANER REMOVAL/INSTALLATION ).
Disconnect the VSA modulator-control unit 46P connector (A) by pulling up the lock (B); the connector disconnects itself.

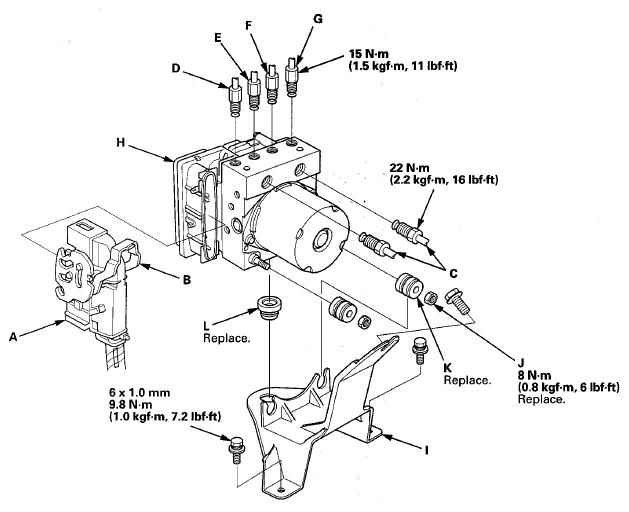

Fig 1: Exploded View Of VSA Modulator-Control Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the six brake lines from the VSA modulator-control unit.
NOTE: Brake lines are connected to the master cylinder (C) and to the right-front (D), the left-rear (E), the right-rear (F), and the left-front (G) brake systems.
Remove the VSA modulator-control unit (H) with the bracket (I) from the body.
Remove the locknuts (J), then remove the VSA modulator-control unit from the bracket.
NOTE: During installation, install a new bushing (K) and new grommets (L). Otherwise, unwanted noise and vibration may be transmitted to the vehicle.
