VSA Off Switch Test/Replacement

Turn the ignition switch to LOCK (0).
Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
Push out the VSA OFF switch (A) from the back of the instrument panel.

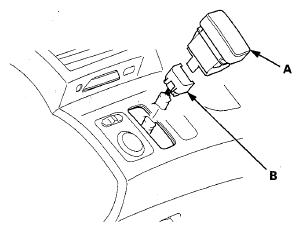

Fig 1: Identifying VSA OFF Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the VSA OFF switch 5P connector (except Canada models with ACC) (B) or VSA OFF switch 13P connector (Canada models with ACC).
Check for continuity between the VSA OFF switch 5P connector terminals No. 1 and No. 2 (except Canada models with ACC) or VSA OFF switch 13P connector terminals No. 11 and No. 12 (Canada models with ACC). There should be continuity when the button is released, and no continuity when the button is pressed.

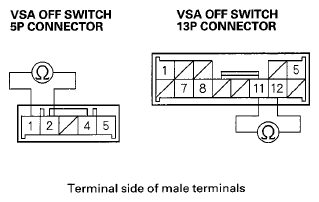

Fig 2: Checking Continuity Between VSA OFF Switch 5P Connector Terminals No. 1 And No. 2 And VSA OFF Switch 13P Connector Terminals No. 11 And No. 12
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the VSA OFF switch 5P connector terminals No. 4 and No. 5 (except Canada models with ACC) or VSA OFF switch 13P connector terminals No. 1 and No. 5 (Canada models with ACC). There should be continuity at all times.

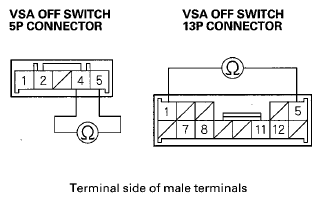

Fig 3: Checking Continuity Between VSA OFF Switch 5P Connector Terminals No. 4 And No. 5 And VSA OFF Switch 13P Connector Terminals No. 1 And No. 5
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the reverse order of removal.
