Relay And Control Unit Locations: Rear

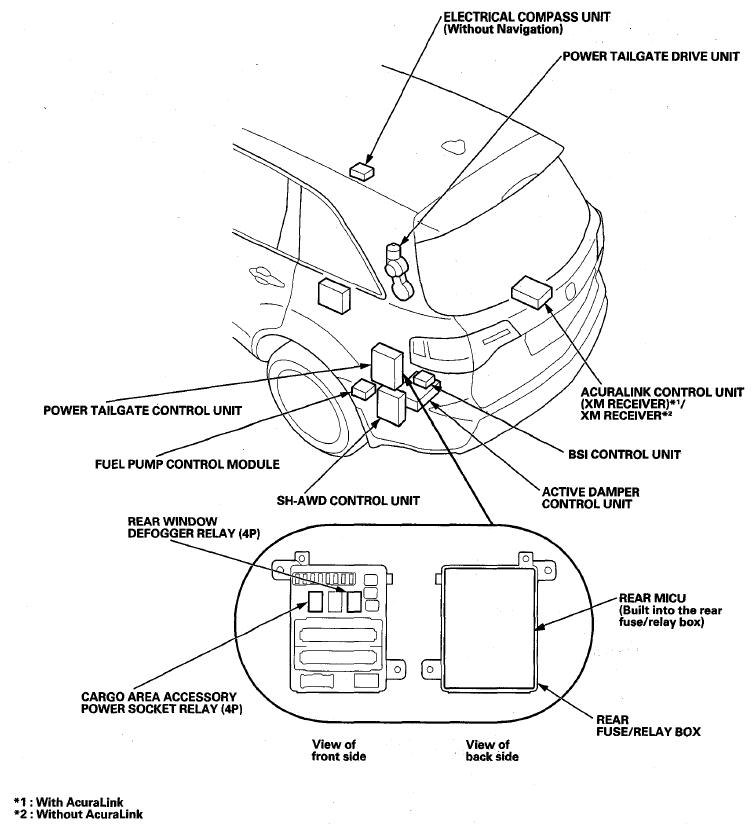

Fig 1: Identifying Relay And Control Unit Locations - Rear
G08053713Courtesy of AMERICAN HONDA MOTOR CO., INC.
