DTC P0506: Idle Control System RPM Lower than Expected: Notes

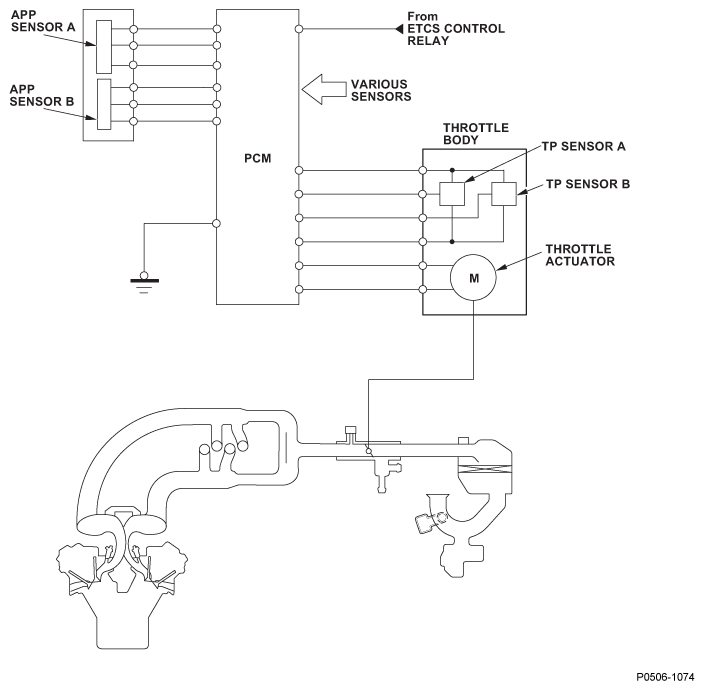

Fig 1: Idle Control System Diagram
G06562750

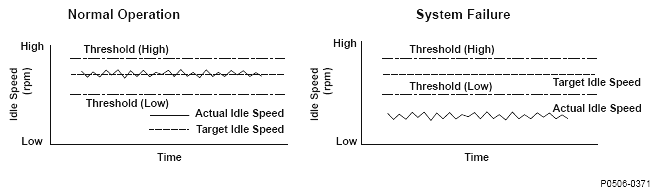

Fig 2: Idle Control System Characteristics (Normal Operation And System Failure)
G04836268
