DTC P060A: Powertrain Control Module (PCM) Internal Control Module Malfunction (Continental PCM): General Description

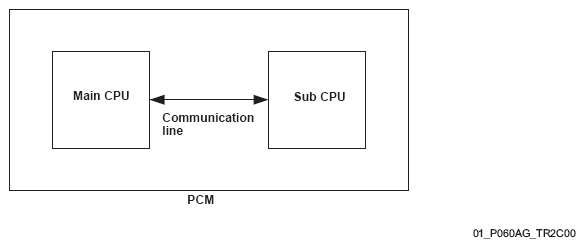

Fig 1: Powertrain Control Module Communication Diagram

When a malfunction occurs in the internal communication between the main CPU and the sub CPU in the powertrain control module (PCM), no monitor signals from the sub CPU for a set time, or abnormal signals are detected for a set time, the PCM detects a malfunction and stores a DTC.
