Under-Floor TWC Removal/Installation

Raise the vehicle on a lift.
Remove the under-floor TWC (A).

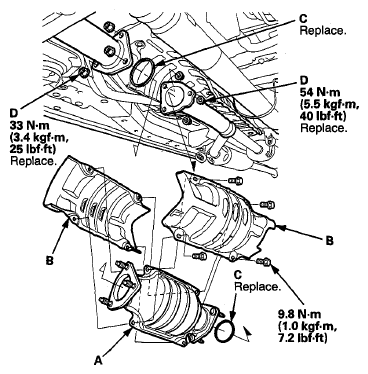

Fig 1: Converter Cover And Related Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the converter cover (B).
Install the parts in the reverse order of removal with new gaskets (C) and new self-locking nuts (D).
