EGR Pipe Replacement

Remove the EGR pipe mounting bolts (A).

Fig 1: EGR Pipe Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Raise the vehicle on a lift.
Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
Remove the EGR pipe mounting nuts (A) and the EGR pipe (B).

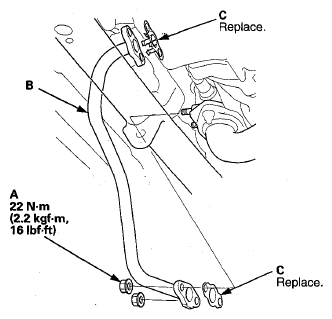

Fig 2: EGR Pipe Mounting Nuts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal with new gaskets (C).
