EVAP Canister Purge Valve Replacement

Disconnect the hoses (A) and the EVAP canister purge valve 2P connector (B).

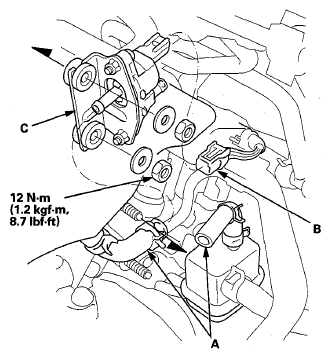

Fig 1: Hoses, EVAP Canister Purge Valve 2P Connector, Bracket And Mounting Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EVAP canister purge valve and the bracket (C).
Remove the EVAP canister purge valve (A) from the bracket (B).

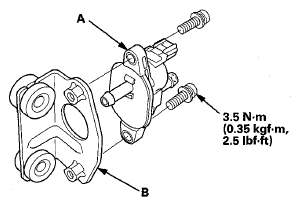

Fig 2: EVAP Canister Purge Valve, Bracket And Mounting Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
