Fuel Pressure Regulator Replacement

Remove the fuel tank unit (see FUEL TANK UNIT REMOVAL AND INSTALLATION ).
Remove the reservoir (A).

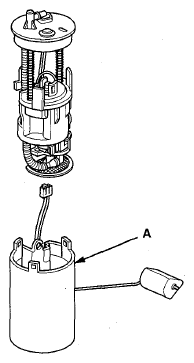

Fig 1: Identifying Fuel Pressure Regulator And Reservoir
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bracket (A).

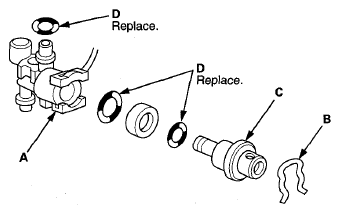

Fig 2: Identifying Fuel Pressure Regulator, Bracket And Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the clip (B).
Remove the fuel pressure regulator (C).
Install the parts in the reverse order of removal with new O-rings (D). When installing the fuel tank unit, align the makes on the unit and the fuel tank (see INSTALLATION ).
NOTE:
- Coat the O-rings with clean engine oil; do not use any other oils or fluids.
- Do not pinch the O-rings during installation.
- Use all the new parts supplied in the pressure regulator replacement kit.
