CKP Sensor Replacement

Raise the vehicle on a lift.
NOTE: Make sure the vehicle is level, because engine oil will drip out when you remove the sensor.
Remove the CKP sensor cover (A).

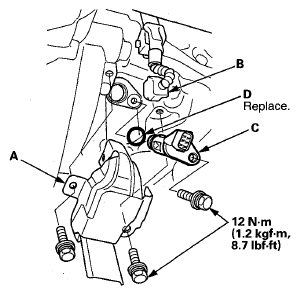

Fig 1: Identifying CKP Sensor Cover And CKP Sensor 3P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the CKP sensor 3P connector (B).
Remove the CKP sensor (C).
Install the parts in the reverse order of removal with a new O-ring (D).
Do the CKP pattern clear/CKP pattern learn procedure (see HDS CLEAR COMMAND ).
Check the engine oil level, and add more oil if needed.
