ECT Sensor 1 Replacement

  1. Drain the engine coolant (see COOLANT CHECK ).
  2. Remove the engine cover (see step 6 under ENGINE REMOVAL ).
  3. Remove the main under-hood fuse box.
  4. Disconnect the ECT sensor 1 2P connector (A).

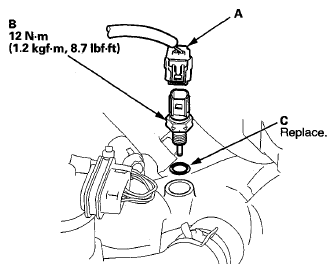

    Fig 1: Identifying ECT Sensor 1 2P Connector And O-Ring
    G08057171Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove ECT sensor 1 (B).
  6. Install the parts in the reverse order of removal with a new O-ring (C), then refill the radiator with engine coolant (see COOLANT CHECK ).
