ATF Filter Replacement

NOTE: The ATF filter is not a scheduled maintenance item. Replace the filter only if it is leaking/or contaminated, or when the transmission is being overhauled or replaced with a remanufactured unit.
  1. Raise the vehicle on a lift, and make sure it is securely supported.
  2. Remove the front undercover (see FRONT UNDERCOVER REPLACEMENT ) and the splash shield (see SPLASH SHIELD REPLACEMENT ).
  3. Remove the drain plug (A), and drain the transmission fluid (ATF).

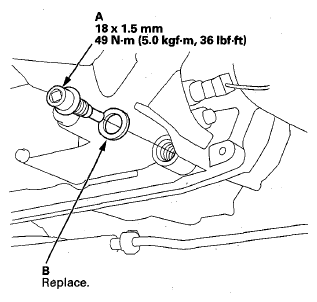

    Fig 1: Locating Drain Plug And Sealing Washer With Torque Specifications
    G08057501Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Reinstall the drain plug with a new sealing washer (B).
  5. Remove the harness cover (A) from the ATF filter holder (B).
    Fig 2: Locating Harness Cover And ATF Filter Holder
    G08057502Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Disconnect the ATF cooler hoses (A) from the ATF filter (B).

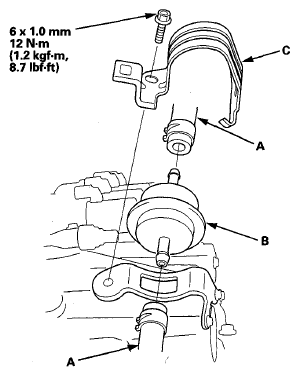

    Fig 3: Locating ATF Filter Holder With Torque Specifications
    G08057503Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the ATF filter holder (C), and remove the ATF filter.
  8. install a new ATF filter, and secure it with its ATF filter holder and bolt.
  9. Connect the ATF cooler hose (see ATF COOLER HOSE REPLACEMENT  ).
  10. Install the harness cover to the ATF filter holder.
  11. Install the splash shield (see SPLASH SHIELD REPLACEMENT ) and the front undercover (see FRONT UNDERCOVER REPLACEMENT ).
  12. Refill the transmission with ATF (see step  8 under ATF Replacement  ).
