Special Tools Required

NOTE:
  • Check for DTCs. If any DTCs are stored, troubleshoot and clear them first.
  • Do not allow dust or other foreign particles to enter the port while installing the pressure gauge adapter.
  • Disable the VSA by pressing the VSA OFF button.
  • Be sure to check the ATF level after each pressure port test. When installing or removing the pressure gauge adapter, ATF may run out of the pressure inspection ports.
  • VSA DTC (s) may come on during the test-drive. If the VSA DTC (s) come on, clear the DTC (s) after testing is done with the HDS.
  1. Make sure the transmission fluid is filled to the proper level (see ATF LEVEL CHECK  ).
  2. Raise the vehicle on a lift, and make sure it is securely supported.
  3. Allow the front wheels to rotate freely.
  4. Remove the front undercover (A) and the splash shield (B).
    Fig 1: Locating Front Undercover And Splash Shield With Torque Specifications
    G08057335Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Connect the HDS to the DLC (A) located under the driver's side of the dashboard.
    Fig 2: Locating DLC Under Driver's Side Of Dashboard
    G08057336Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Turn the ignition switch to ON (II).
  7. Make sure the HDS communicates with the PCM, and go to the A/T Data List. If it does not, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
  8. Connect the A/T pressure adapter to the A/T pressure test hose, then connect the A/T pressure test hose to the A/T oil pressure gauge set.
    Fig 3: Identifying A/T Pressure Adapter, A/T Pressure Test Hose And A/T Oil Pressure Gauge Set
    G08057337Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. When testing the oil pressure at each inspection port, select a suitable adapter from the following table, and connect each adapter to the pressure gauge assembled in step  8.
    Tool Connect to
    Pressure gauge adapter A and E
    • 2nd clutch pressure
    • 4th clutch pressure
    Pressure gauge adapter B
    • 1st clutch pressure
    • 5th clutch pressure
    • Torque converter clutch pressure
    Pressure gauge adapter C Line pressure
    Pressure gauge adapter D
    • 3rd clutch pressure
    • 6th clutch pressure
    Fig 4: Identifying Pressure Gauge Adapters
    G08057338Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Line Pressure Test

  10. Install pressure gauge adapter C to the line pressure inspection port (A), then connect the A/T pressure adapter to pressure gauge adapter C.
    Fig 5: Locating Line Pressure Inspection Port
    G08057339Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Start the engine in P, and warm it up to normal operating temperature (ATF temperature between 122°F and 212°F (50°C and 100°C)).
  12. Shift the shift lever to D.
  13. With the APP Sensor opening less than 18 % with the HDS in the A/T Data List, measure the low line pressure from the A/T oil pressure gauge.
  14. Measure the normal line pressure while holding the engine speed at 2, 000 rpm with the shift lever in P or N.
    NOTE: When measuring the normal line pressure, do not measure with the shift lever in other than P or N.
    Line Pressure Fluid Pressure
    Standard Service Limit
    Low 667-716 kPa (6.80-7.30 kgf/cm2 , 96.7-103.8 psi) Lower limit: 618 kPa (6.30 kgf/cm2 , 89.6 psi) Upper limit: 765 kPa (7.80 kgf/cm2 , 110.9 psi)
    Normal 1, 123-1, 172 kPa (11.45-11.95 kgf/cm2 , 162.8-169.9 psi) 1, 079 kPa (11.00 kgf/cm2 , 156.4 psi)
  15. Turn the engine off, then disconnect pressure gauge adapter C from the line pressure inspection port.
  16. Install a new sealing bolt to the line pressure inspection port, and tighten the bolt to 20 N.m (2.0 kgf.m, 14 lbf.ft). Do not reuse the old sealing bolt.

    2nd Clutch Pressure Test

  17. Disconnect the transmission fluid pressure switch A (2nd clutch) connector, and remove transmission fluid pressure switch A (2nd clutch).
  18. Install transmission fluid pressure switch A (2nd clutch) (B) and the sealing washer (C) to pressure gauge adapter A, then connect the A/T pressure adapter to pressure gauge adapter A.
    Fig 6: Locating Transmission Fluid Pressure Switch A (2nd Clutch) (B) And Sealing Washer
    G08057340Courtesy of AMERICAN HONDA MOTOR CO., INC.
  19. Install pressure gauge adapter E (quick connector) to the 2nd clutch pressure inspection port (B), then connect pressure gauge adapter A to pressure gauge adapter E (quick connector). Connect the transmission fluid pressure switch A (2nd clutch) connector to transmission fluid pressure switch A (2nd clutch).
    Fig 7: Locating 2nd Clutch Pressure Inspection Port
    G08057341Courtesy of AMERICAN HONDA MOTOR CO., INC.
  20. Start the engine, and run the vehicle with sequential sportshift mode in 2nd gear.
  21. Quickly press the accelerator pedal to read the APP Sensor at 20 % or more with the HDS in the A/T Data List. Measure the 2nd clutch pressure from the A/T oil pressure gauge.
    NOTE: Do not press the accelerator pedal slowly.
    Pressure Fluid Pressure
    Standard Service Limit
    2nd clutch 1, 123-1, 172 kPa (11.45-11.95 kgf/cm2 , 162.8-169.9 psi) 1, 079 kPa (11.00 kgf/cm2 , 156.4 psi)
  22. Turn the engine off.
  23. Disconnect the transmission fluid pressure switch A (2nd clutch) connector from transmission fluid pressure switch A (2nd clutch). Remove the pressure gauge adapters from the 2nd clutch pressure inspection port.
  24. Remove transmission fluid pressure switch A (2nd clutch) form pressure gauge adapter A.
  25. Install transmission fluid pressure switch A (2nd clutch) and a new sealing washer, and tighten transmission fluid pressure switch A (2nd clutch) to 20 N.m (2.0 kgf.m, 14 lbf.ft). Do not reuse the old sealing washer.
  26. Connect the transmission fluid pressure switch A (2nd clutch) connector.

    4th Clutch Pressure Test - Engaging 4th Gear

  27. Disconnect the transmission fluid pressure switch C (4th clutch) connector, and remove transmission fluid pressure switch C (4th clutch).
  28. Install transmission fluid pressure switch C (4th clutch) (B) and the sealing washer (C) to pressure gauge adapter A, then connect the A/T pressure adapter to pressure gauge adapter A.
    Fig 8: Locating Transmission Fluid Pressure Switch C (4th Clutch), Sealing Washer And Pressure Gauge Adapter A
    G08057342Courtesy of AMERICAN HONDA MOTOR CO., INC.
  29. Install pressure gauge adapter E (quick connector) to the 4th clutch pressure inspection port (B), then connect pressure gauge adapter A to pressure gauge adapter E (quick connector). Connect the transmission fluid pressure switch C (4th clutch) connector to transmission fluid pressure switch C (4th clutch).
    Fig 9: Locating 4th Clutch Pressure Inspection Port
    G08057343Courtesy of AMERICAN HONDA MOTOR CO., INC.
  30. Start the engine, and run the vehicle with sequential sportshift mode in 4th gear. Quickly press the accelerator pedal to read the APP Sensor at 20 % or more with the HDS in the A/T Data List. Measure the 4th clutch pressure from the A/T oil pressure gauge.
    NOTE: Do not press the accelerator pedal slowly.
    Pressure Fluid Pressure
    Standard Service Limit
    4th clutch 1, 123-1, 172 kPa (11.45-11.95 kgf/cm2 , 162.8-169.9 psi) 1, 079 kPa (11.00 kgf/cm2 , 156.4 psi)
  31. Bring the engine back to an idle, then apply the brake pedal to stop the wheels from rotating.

    4th Clutch Pressure Test - Engaging Reverse Gear

  32. Shift to R, then release the brake pedal. Quickly press the accelerator pedal to read the APP Sensor at 20 % or more with the HDS in the A/T Data List. Measure the 4th clutch pressure from the A/T oil pressure gauge.
    NOTE: Do not press the accelerator pedal slowly.
    Pressure Fluid Pressure
    Standard Service Limit
    4th clutch in R 1, 123-1, 172 kPa (11.45-11.95 kgf/cm2 , 162.8-169.9 psi) 1, 079 kPa (11.00 kgf/cm2 , 156.4 psi)
  33. Turn the engine off.
  34. Disconnect the transmission fluid pressure switch C (4th clutch) connector from transmission fluid pressure switch C (4th clutch). Remove the pressure gauge adapters from the 4th clutch pressure inspection port.
  35. Remove transmission fluid pressure switch C (4th clutch) from pressure gauge adapter A.
  36. Install transmission fluid pressure switch C (4th clutch) and a new sealing washer, and tighten transmission fluid pressure switch C (4th clutch) to 20 N.m (2.0 kgf.m, 14 lbf.ft). Do not reuse the old sealing washer.
  37. Connect the transmission fluid pressure switch C (4th clutch) connector.

    Torque Converter Clutch Pressure Test

  38. Install pressure gauge adapter B to the torque converter clutch pressure inspection port (A), then connect the A/T pressure adapter to pressure gauge adapter B.
    Fig 10: Locating Torque Converter Clutch Pressure Inspection Port
    G08057344Courtesy of AMERICAN HONDA MOTOR CO., INC.
  39. Start the engine, and run the vehicle with sequential sportshift mode in 2nd gear. Measure the torque converter clutch pressure while holding the engine speed at 4, 000 rpm.
    Pressure Fluid Pressure
    Standard Service Limit
    Torque converter clutch 294 kPa (3.00 kgf/cm2 , 42.7 psi) or more 245 kPa (2.50 kgf/cm2 , 35.6 psi)
  40. Turn the engine off, then remove pressure gauge adapter B from the torque converter clutch pressure inspection port.
  41. Install a new sealing bolt to the torque converter clutch pressure inspection port, and tighten the sealing bolt to 20 N.m (2.0 kgf.m, 14 lbf.ft). Do not reuse the old sealing bolt.

    1st Clutch Pressure Test

  42. Remove the intake air duct and the air cleaner housing.
  43. Install pressure gauge adapter B to the 1st clutch pressure inspection port (A), then connect the A/T pressure adapter to pressure gauge adapter B.
    Fig 11: Locating 1st Clutch Pressure Inspection Port
    G08057345Courtesy of AMERICAN HONDA MOTOR CO., INC.
  44. Temporarily install the intake air duct and the air cleaner housing.
  45. Start the engine, and run the vehicle with sequential sportshift mode in 1st gear. Quickly press the accelerator pedal to read the APP Sensor at 20 % or more with the HDS in the A/T Data List. Measure the 1st clutch pressure from the A/T oil pressure gauge.
    NOTE: Do not press the accelerator pedal slowly.
    Pressure Fluid Pressure
    Standard Service Limit
    1st clutch 1, 123-1, 172 kPa (11.45-11.95 kgf/cm2 , 162.8-169.9 psi) 1, 079 kPa (11.00 kgf/cm2 , 156.4 psi)
  46. Turn the engine off, remove the intake air duct and the air cleaner housing.
  47. Remove the pressure gauge adapters from the 1st clutch pressure inspection port.
  48. Install a new sealing bolt in the 1st clutch pressure inspection port, and tighten the sealing bolt to 20 N.m (2.0 kgf.m, 14 lbf.ft). Do not reuse the old sealing bolt.

    5th Clutch Pressure Test

  49. Install pressure gauge adapter B to the 5th clutch pressure inspection port (A), then connect the A/T pressure adapter to pressure gauge adapter B.
    Fig 12: Locating 5th Clutch Pressure Inspection Port
    G08057346Courtesy of AMERICAN HONDA MOTOR CO., INC.
  50. Temporarily install the intake air duct and the air cleaner housing.
  51. Start the engine, and run the vehicle with sequential sportshift mode in 5th gear.

    Quickly press the accelerator pedal to read the APP Sensor at 20 % or more with the HDS in the A/T Data List. Measure the 5th clutch pressure from the A/T oil pressure gauge.

    NOTE: Do not press the accelerator pedal slowly.
    Pressure Fluid Pressure
    Standard Service Limit
    5th clutch 1, 123-1, 172 kPa (11.45-11.95 kgf/cm2 , 162.8-169.9 psi) 1, 079 kPa (11.00 kgf/cm2 , 156.4 psi)
  52. Turn the engine off, remove the intake air duct and the air cleaner housing.
  53. Remove the pressure gauge adapters from the 5th clutch pressure inspection port.
  54. Install a new sealing bolt in the 5th clutch pressure inspection port, and tighten the sealing bolt to 20 N.m (2.0 kgf.m, 14 lbf.ft). Do not reuse the old sealing bolt.

    3rd Clutch Pressure Test

  55. Install pressure gauge adapter D to the 3rd clutch pressure inspection port (A), then connect the A/T pressure adapter to pressure gauge adapter D.
    Fig 13: Locating 3rd Clutch Pressure Inspection Port
    G08057347Courtesy of AMERICAN HONDA MOTOR CO., INC.
  56. Temporarily install the intake air duct and the air cleaner housing.
  57. Start the engine, and run the vehicle with sequential sportshift mode in 3rd gear.

    Quickly press the accelerator pedal to read the APP Sensor at 20 % or more with the HDS in the A/T Data List. Measure the 3rd clutch pressure from the A/T oil pressure gauge.

    NOTE: Do not press the accelerator pedal slowly.
    Pressure Fluid Pressure
    Standard Service Limit
    3rd clutch 1, 123-1, 172 kPa (11.45-11.95 kgf/cm2 , 162.8-169.9 psi) 1, 079 kPa (11.00 kgf/cm2 , 156.4 psi)
  58. Turn the engine off, remove the intake air duct and the air cleaner housing.
  59. Remove the pressure gauge adapters from the 3rd clutch pressure inspection port.
  60. Install a new sealing bolt in the 3rd clutch pressure inspection port, and tighten the sealing bolt to 27 N.m (2.8 kgf.m, 20 lbf.ft). Do not reuse the old sealing bolt.

    6th Clutch Pressure Test

  61. Install pressure gauge adapter D to the 6th pressure inspection port (A), then connect the A/T pressure adapter to pressure gauge adapter D.
    Fig 14: Locating 6th Pressure Inspection Port
    G08057348Courtesy of AMERICAN HONDA MOTOR CO., INC.
  62. Temporarily install the intake air duct and the air cleaner housing.
  63. Start the engine, and run the vehicle with sequential sportshift mode in 6th gear. Quickly press the accelerator pedal to read the APP Sensor at 20 % or more with the HDS in the A/T Data List. Measure the 6th clutch pressure from the A/T oil pressure gauge.
    NOTE: Do not press the accelerator pedal slowly.
    Pressure Fluid Pressure
    Standard Service Limit
    6th clutch 1, 123-1, 172 kPa (11.45-11.95 kgf/cm2 , 162.8-169.9 psi) 1, 079 kPa (11.00 kgf/cm2 , 156.4 psi)
  64. Turn the engine off, then remove the intake air duct and the air cleaner housing.
  65. Remove the pressure gauge adapters from the 6th clutch pressure inspection port.
  66. Install a new sealing bolt in the 6th clutch pressure inspection port, and tighten the sealing bolt to 27 N.m (2.8 kgf.m, 20 lbf.ft). Do not reuse the old sealing bolt.
  67. Install the intake air duct and the air cleaner housing.
  68. If any of the pressures are out of the service limit, refer to the problems and probable causes listed in the table.
    Problem Probable causes
    No or low line pressure
    • Torque converter
    • ATF pump
    • Main regulator valve
    • Clogged ATF strainer
    No or low 1st clutch pressure 1st clutch
    No or low 2nd clutch pressure 2nd clutch
    No or low 3rd clutch pressure 3rd clutch
    No or low 4th clutch pressure 4th clutch
    No or low 5th clutch pressure 5th clutch
    No or low 6th clutch pressure 6th clutch
    No or low 4th clutch pressure in R
    • Shift fork shaft
    • 4th clutch
    No or low torque converter clutch pressure
    • Lock-up control valve
    • Lock-up shift valve
    • Shift solenoid valve C

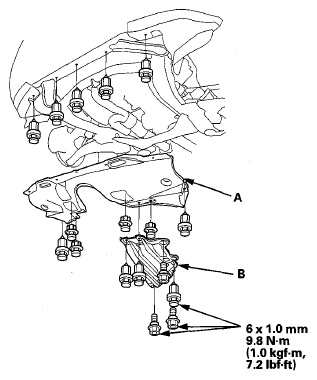

  69. Install the splash shield (A) and the front undercover (B).
    Fig 15: Locating Splash Shield And Front Undercover With Torque Specification
    G08057349Courtesy of AMERICAN HONDA MOTOR CO., INC.
  70. Check the ATF level (see ATF LEVEL CHECK  ).
  71. Do an all DTC check with the HDS. If necessary, clear the DTC (s) with the HDS.
