Keyless Access RF Unit 2 Replacement

Keyless Access RF Unit 2 Replacement

1. Remove the rear shelf Service and Repair.

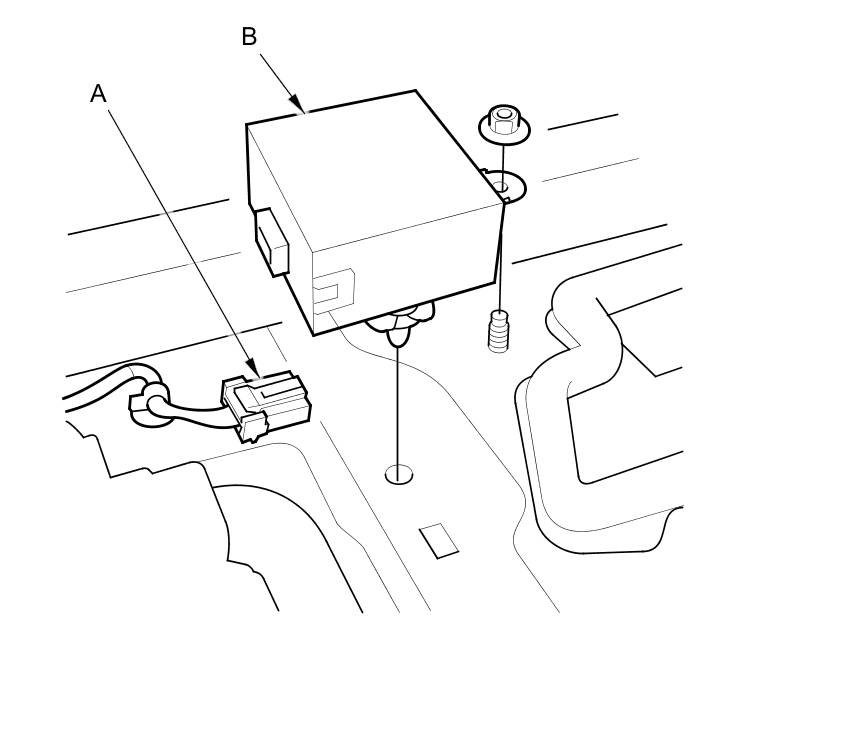

2. Disconnect the 6P connector (A) from RF unit 2 (B).





3. Remove the nut and RF unit 2.

4. Install the unit in the reverse order of removal.
