Cruise Control Combination Switch Test

Cruise Control Combination Switch Test

1. Remove the driver's airbag Driver's Airbag Replacement.

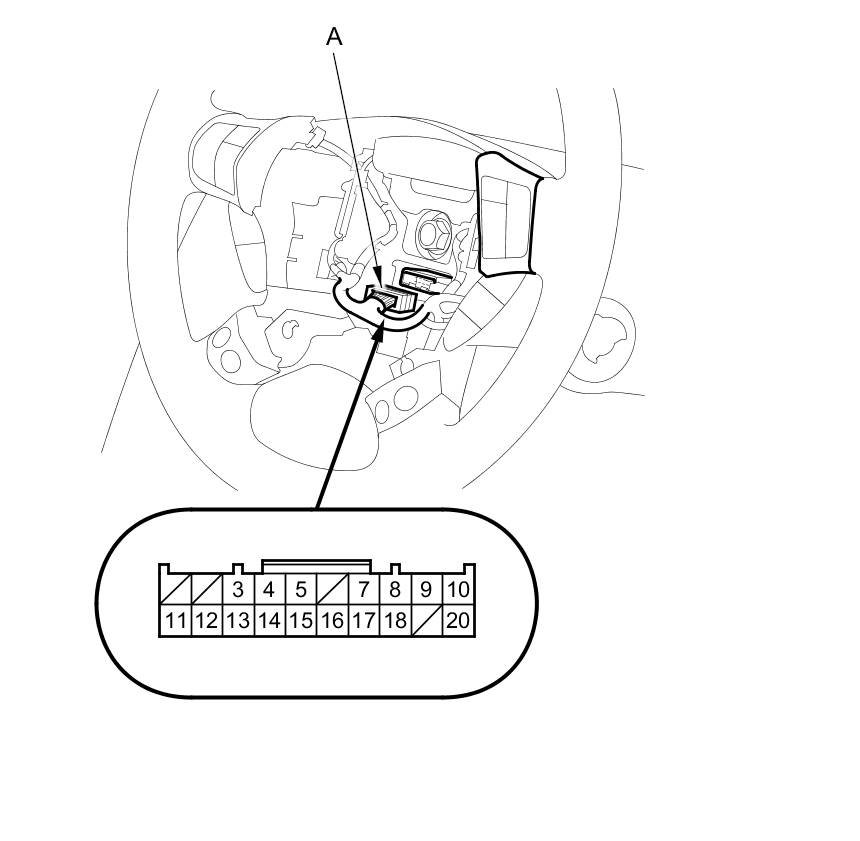

2. Disconnect the 20P connector (A) from the cable reel.

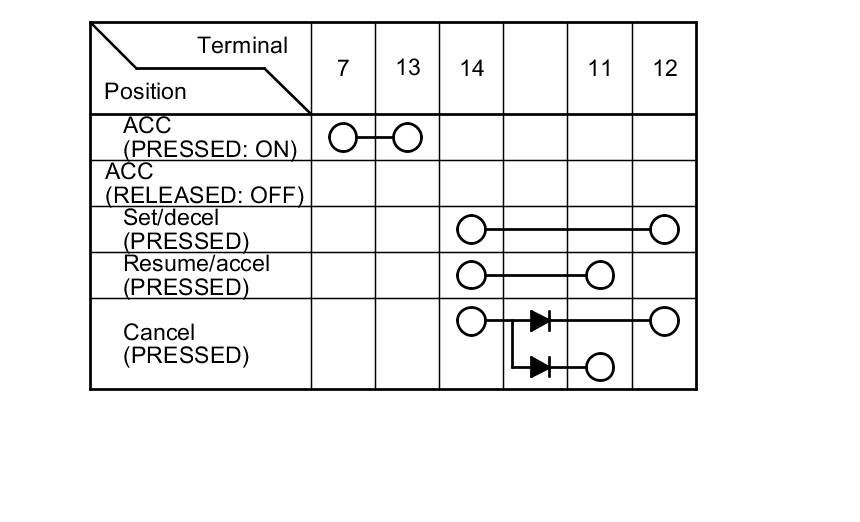

3. Check for continuity between the terminals in each switch position according to the table.





4. If the continuity is not as specified, replace the cruise control combination switch.

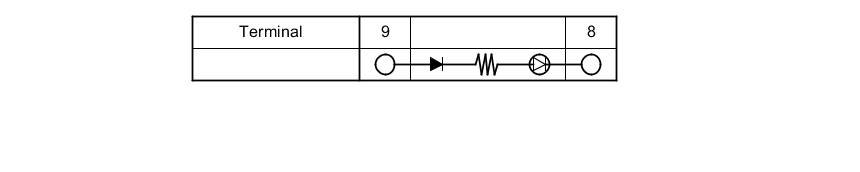

5. Use a diode tester between the terminals in each switch position according to the table.





6. If the diode test is not as specified, replace the cruise control combination switch Cruise Control Combination Switch Replacement.
