Alarm Module, (Vehicle Antitheft)
>>
Immobilizer Control Unit-Receiver Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

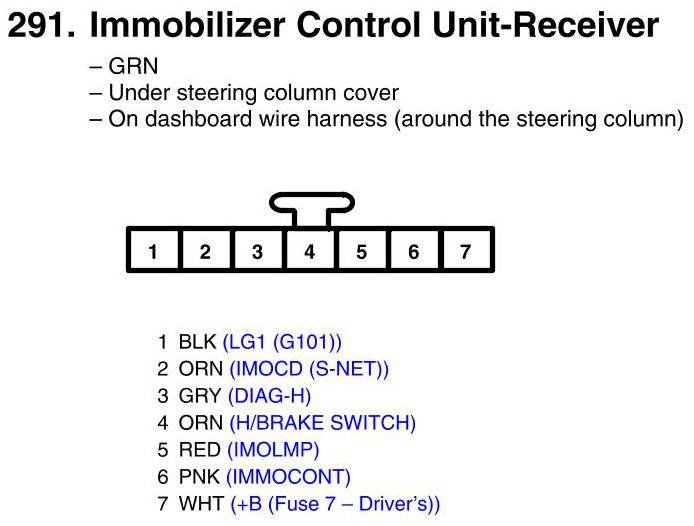

Immobilizer Control Unit-Receiver Connector View
