View 306 - Fuel Pump Control Module Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

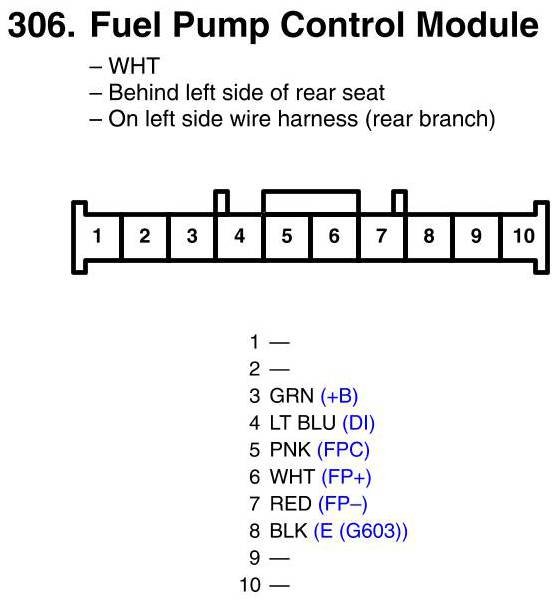

View 306 - Fuel Pump Control Module Connector View
