Parking Assist Control Module

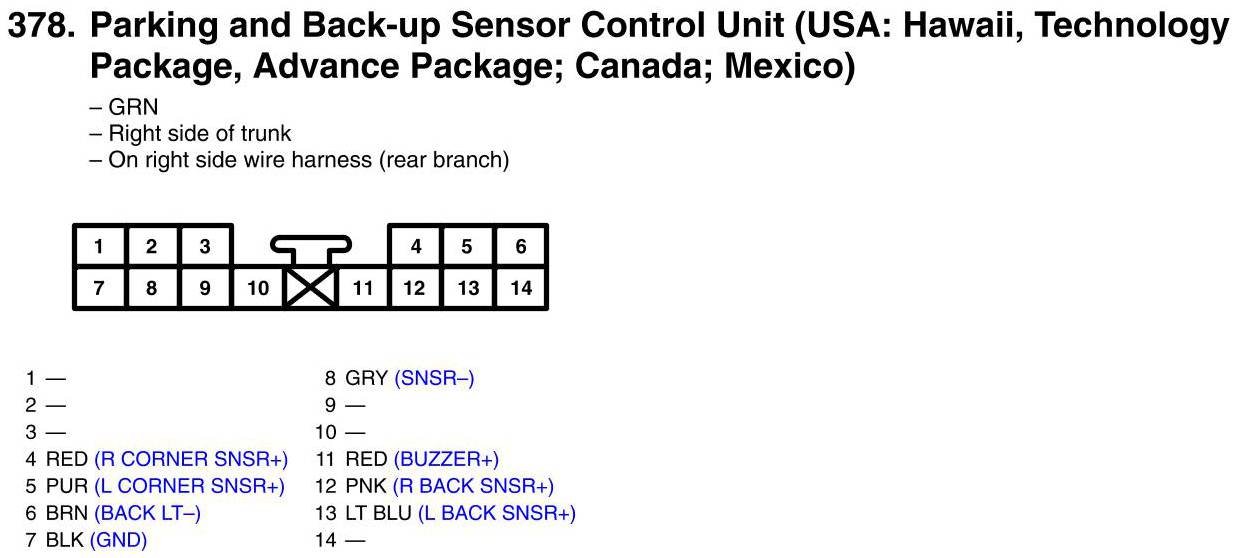

View 378 - Parking and Back-Up Sensor Control Unit Connector View (USA: Hawaii, Technology Package, Advance Package; Canada; Mexico)
