Audio-HVAC Subdisplay Unit Removal/Installation

Audio-HVAC Subdisplay Unit Removal/Installation

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the dashboard.

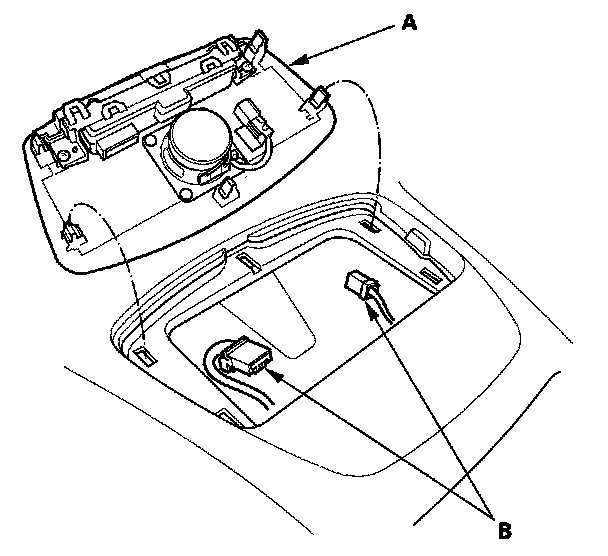

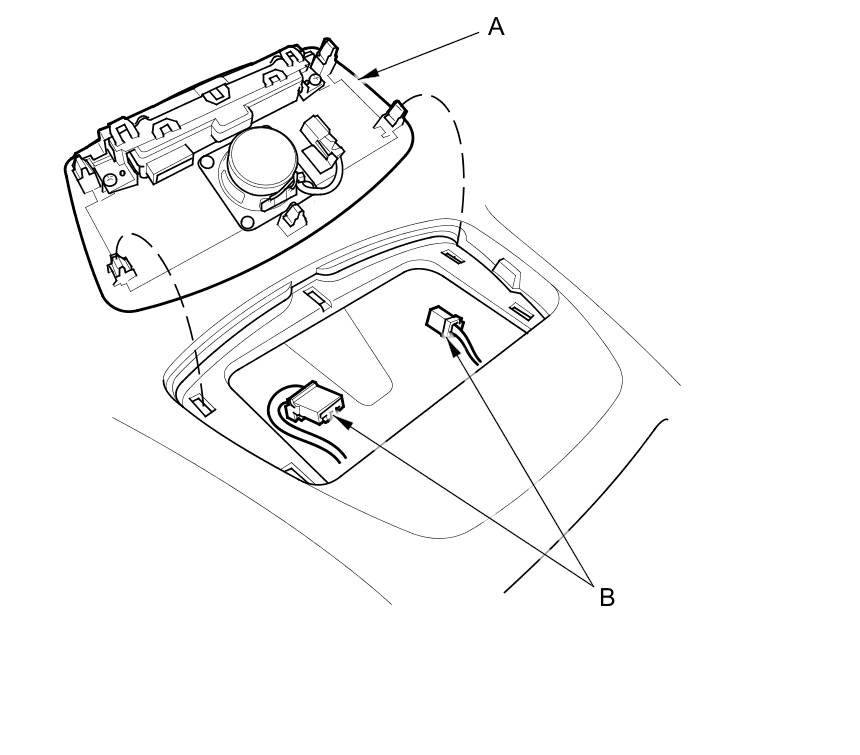

1. Remove the dashboard upper visor (A).





2. Disconnect the connectors (B).

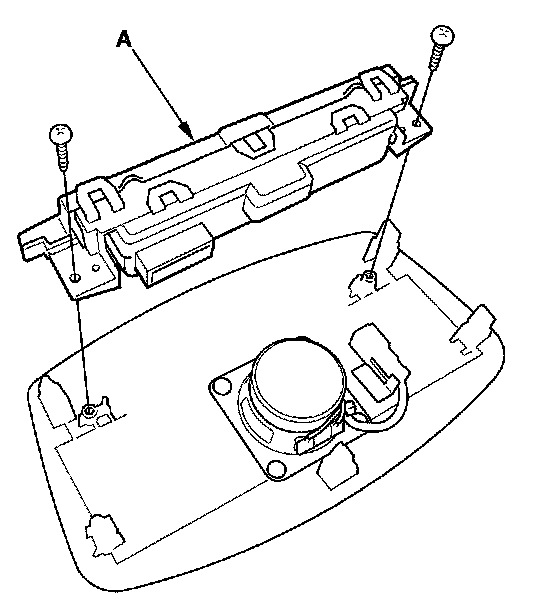

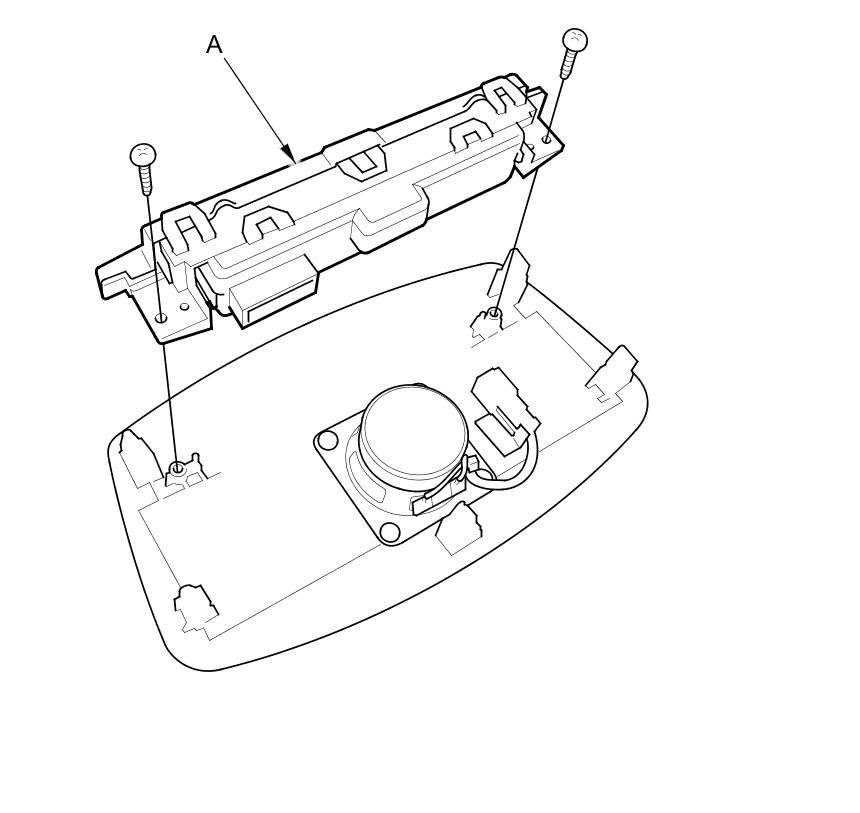

3. Remove the self-tapping screws and the audio-HVAC subdisplay unit (A).





4. Install the display in the reverse order of removal.
