Trunk Light Test/Replacement

Trunk Light Test/Replacement

1. Open the trunk lid.

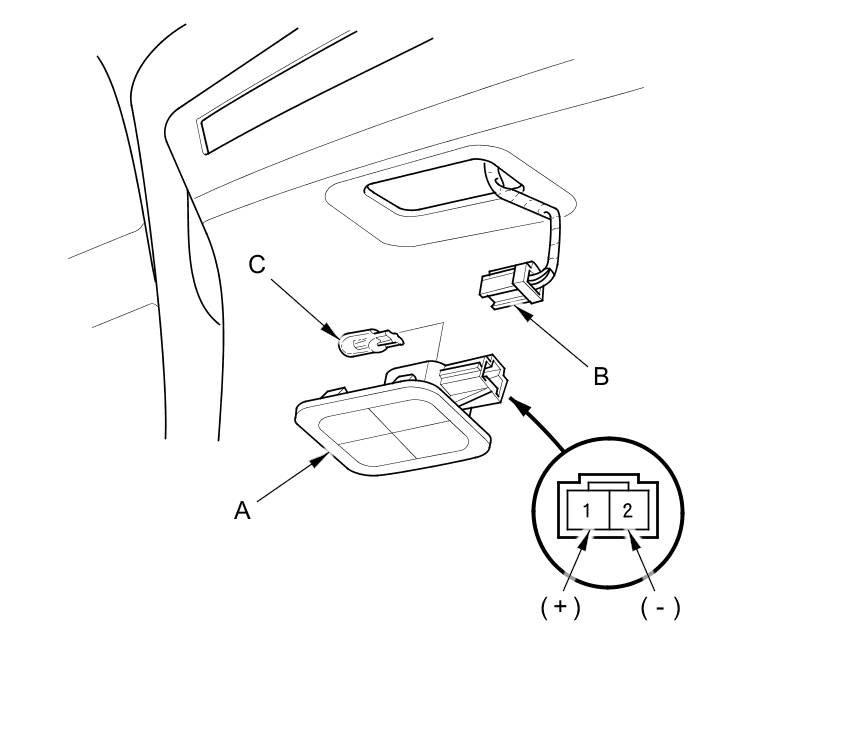

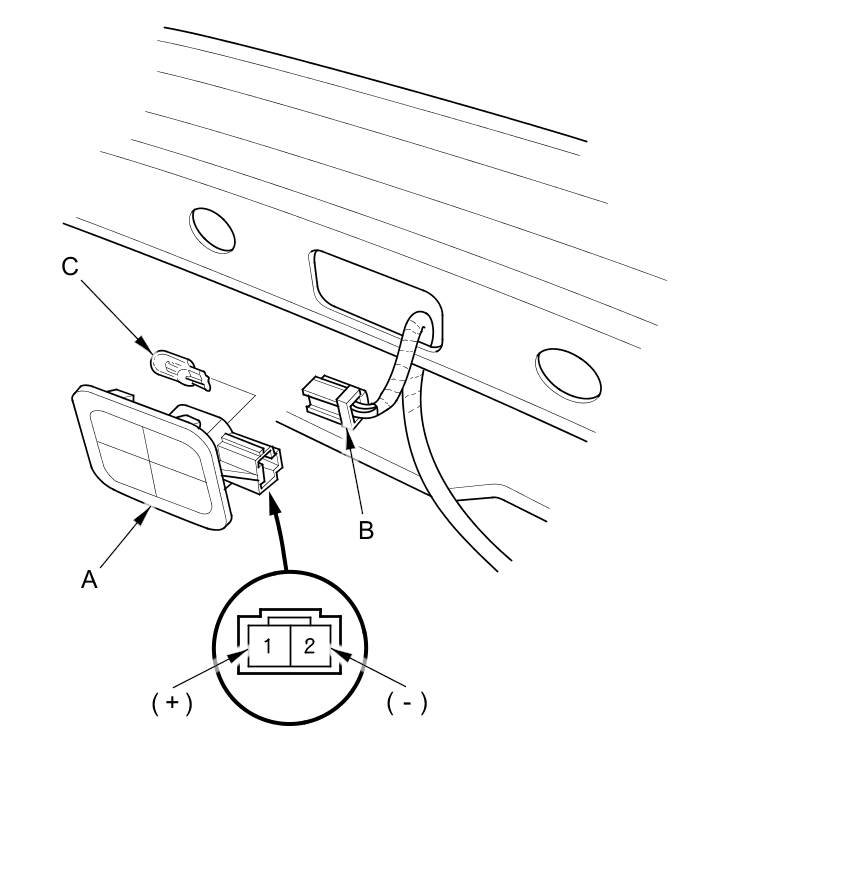

2. Carefully pry out the trunk light (A).













3. Disconnect the 2P connector (B) from the light.

4. Check for continuity between terminals No. 1 (+) and No. 2 (-). There should be continuity. If there is no continuity, check the bulb (C). If the bulb is OK, replace the trunk light.

5. Install the parts in the reverse order of removal.
