Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Module Removal/Installation

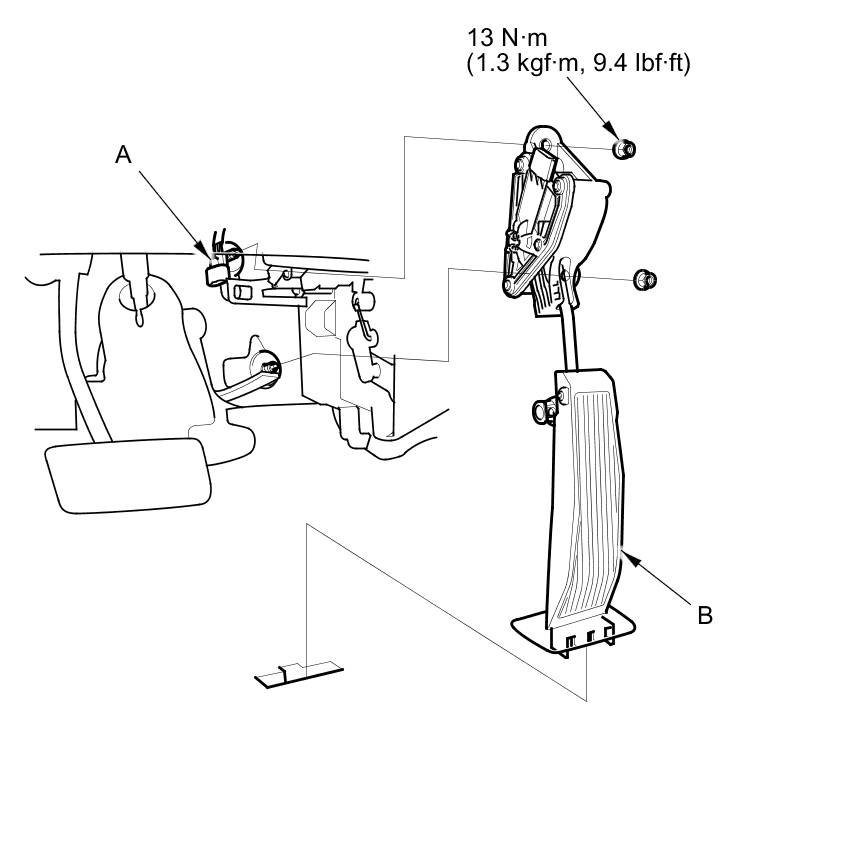

1. Disconnect the accelerator pedal position (APP) sensor 6P connector (A).





2. Release the lock tab on the base of the accelerator pedal, then remove the accelerator pedal module (B).

NOTE: The APP sensor is not available separately. Do not disassemble the accelerator pedal module.

3. Install the parts in the reverse order of removal.
