Home >> Acura >> 2012 >> RL V6-3.7L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> PCM Inputs And Outputs At Connector B
April 5, 2026: LEMON Manuals is launched! Read the announcement.

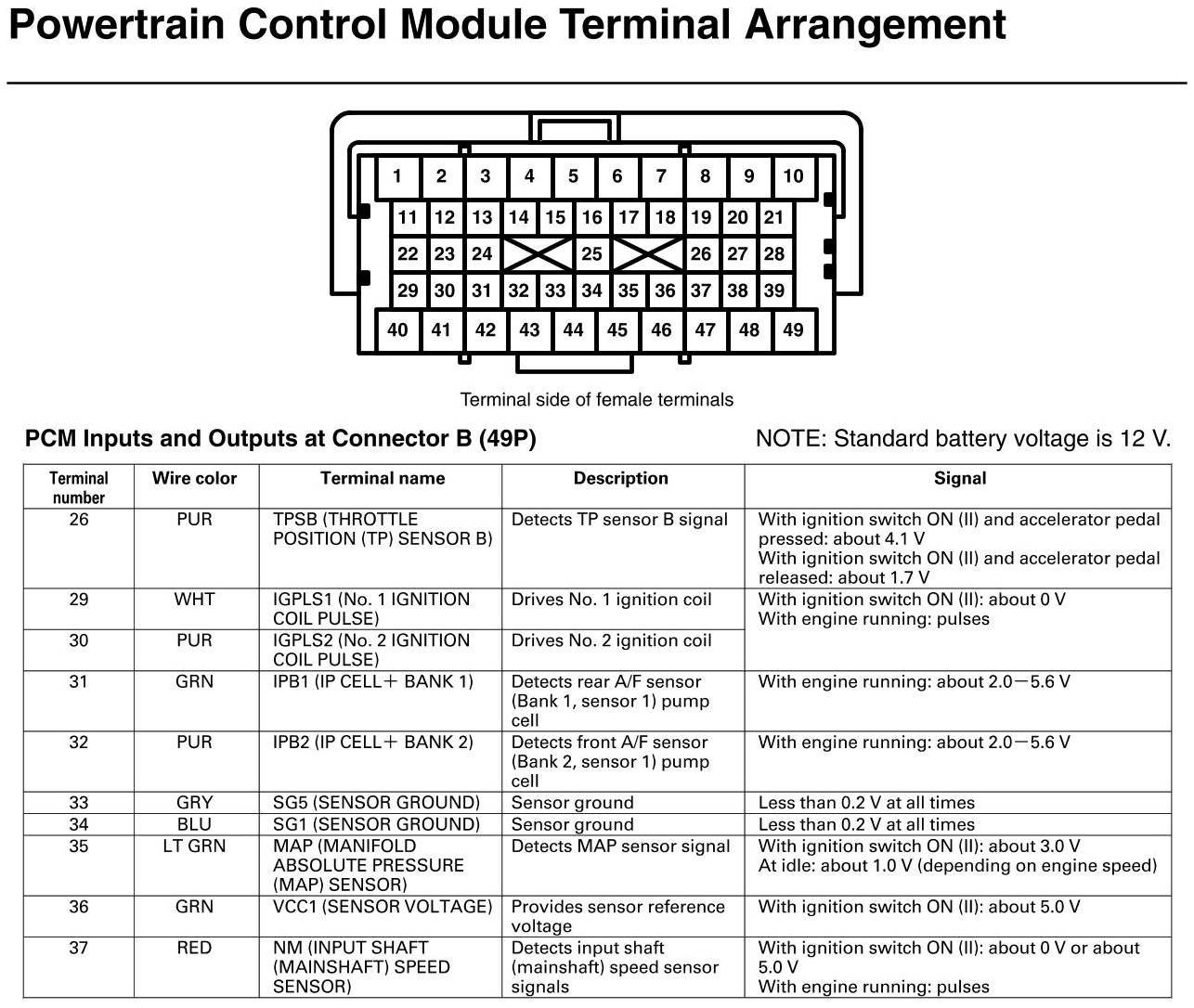

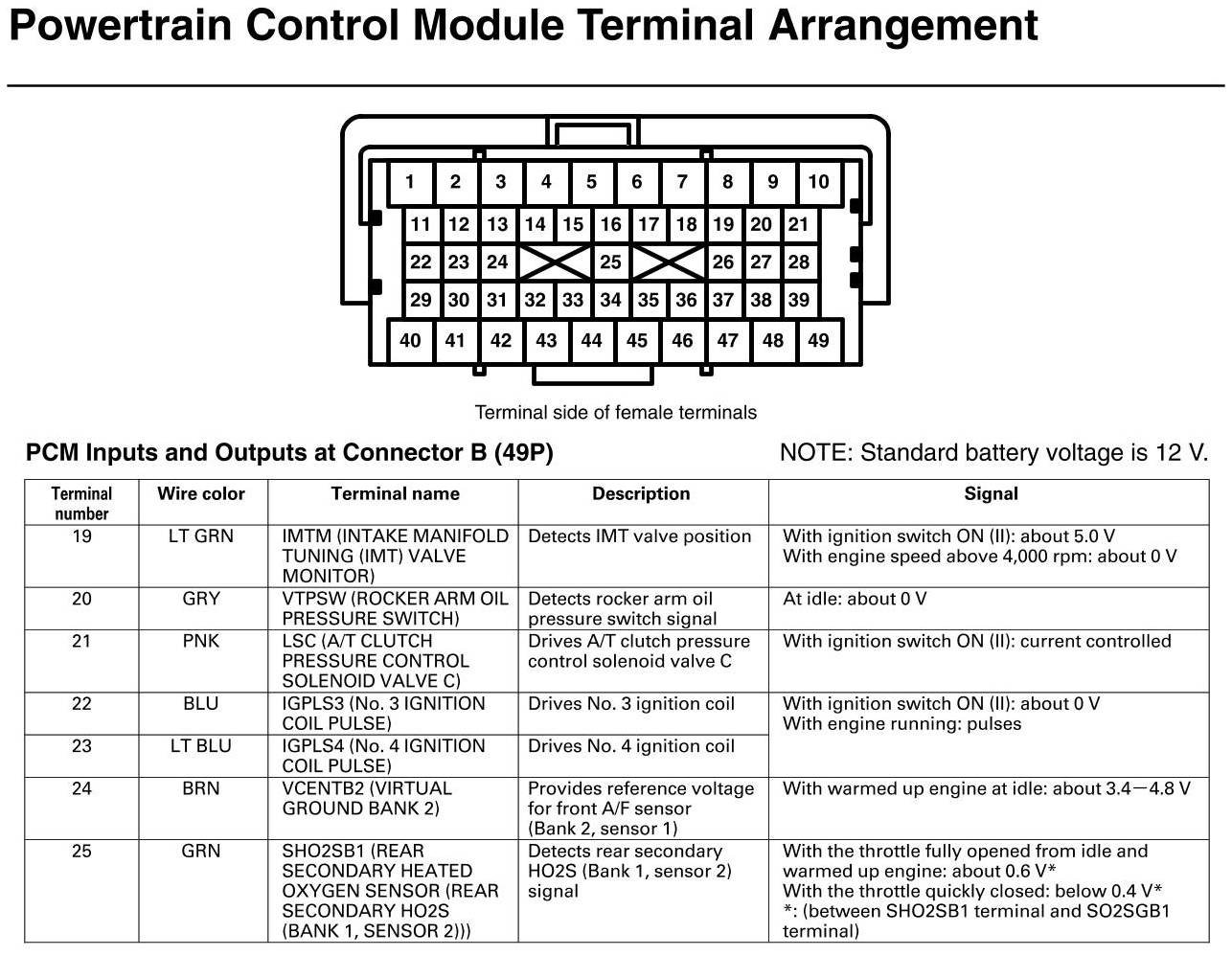

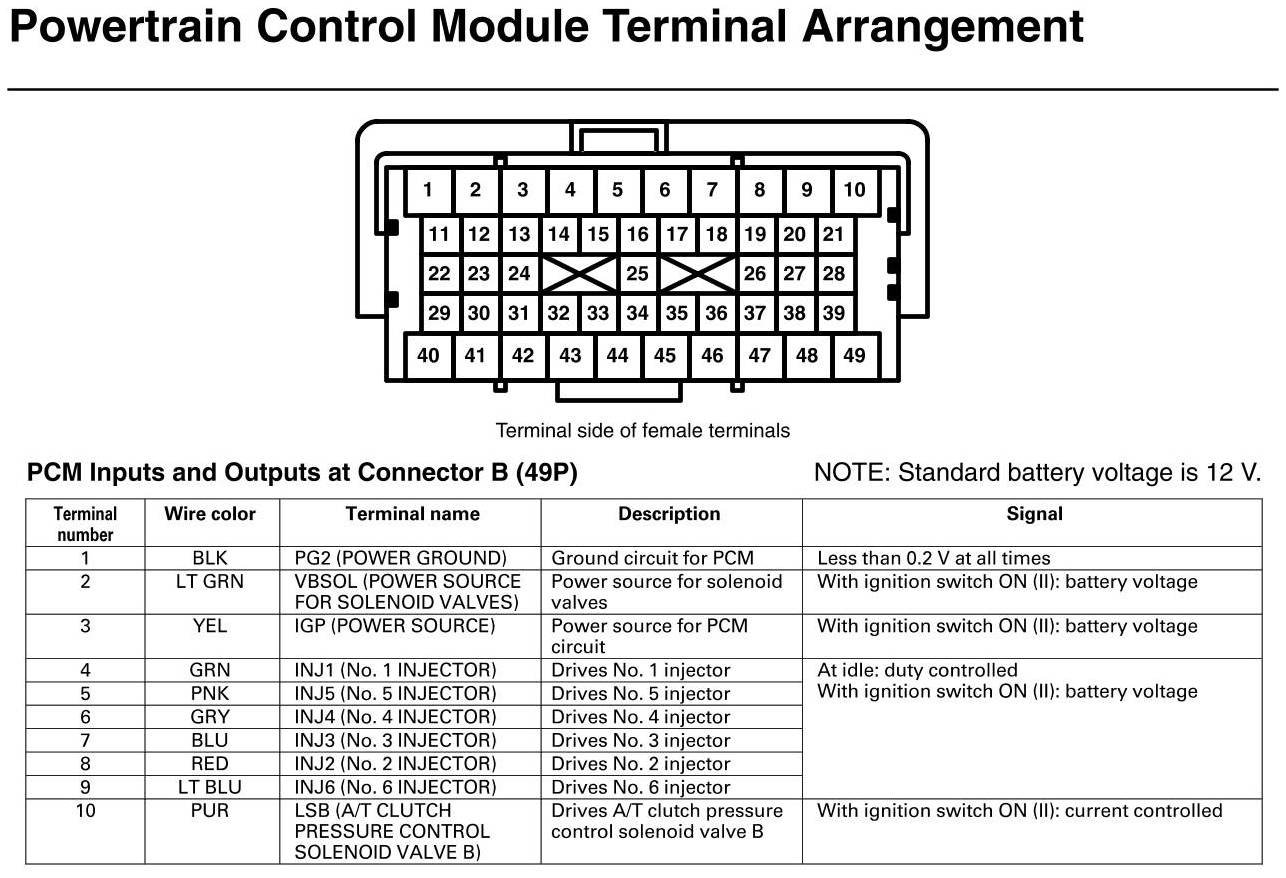

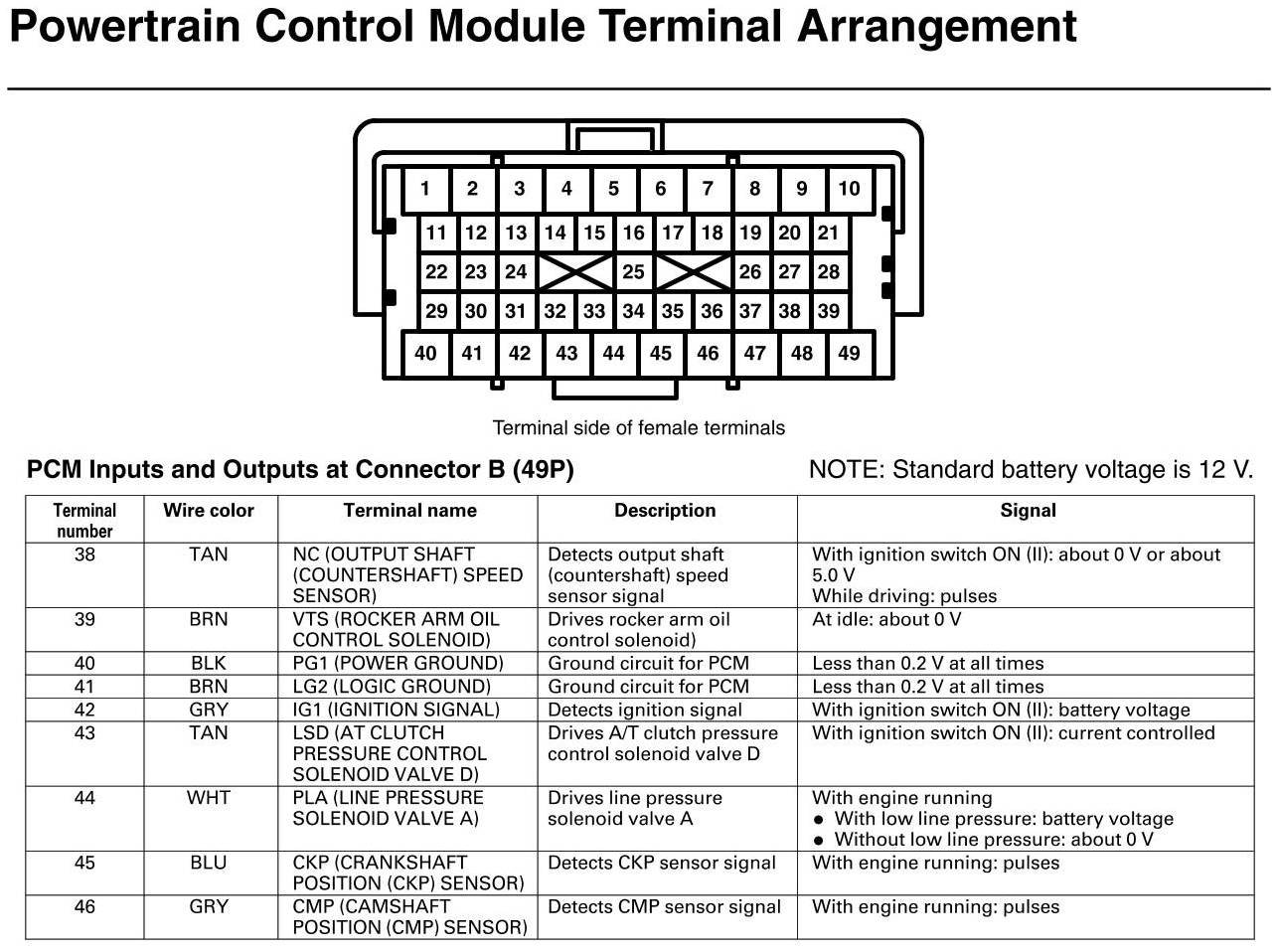

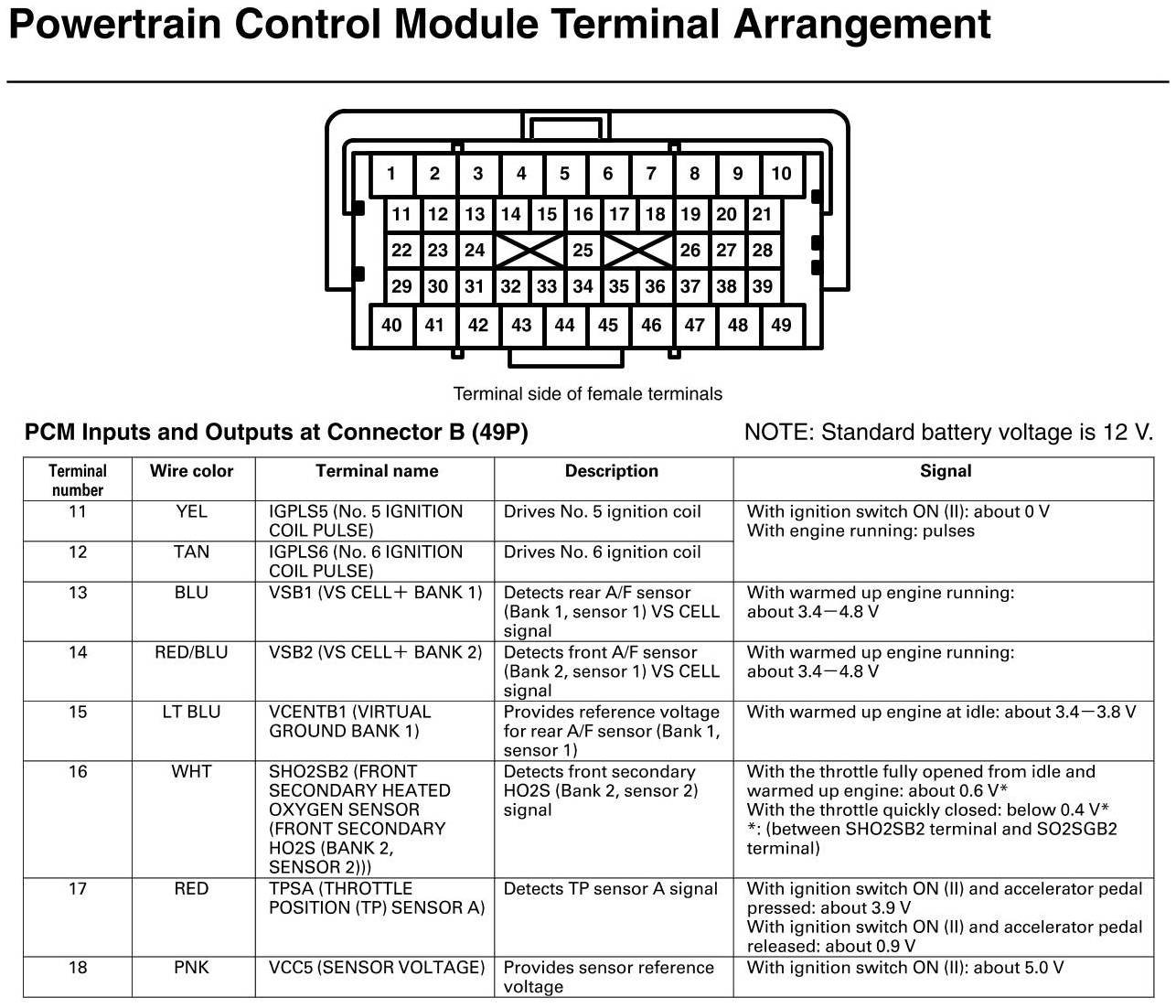

PCM Inputs And Outputs At Connector B
