A/F Sensor Replacement

A/F Sensor Replacement

Special Tools Required

- O2 Sensor Wrench Snap-on YA8875, O2 Sensor Wrench, E19 SP Tools 93750, or equivalent, commercially available

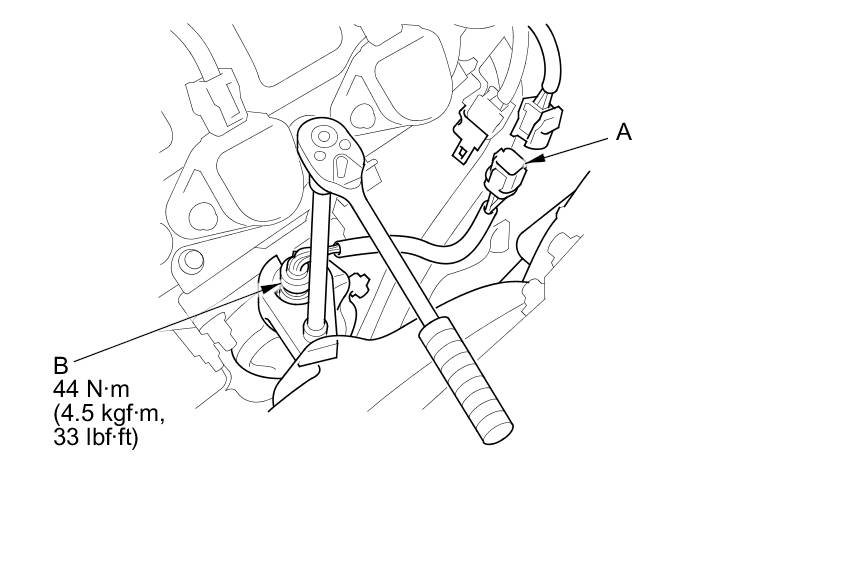

Front Bank (Bank2)

1. Disconnect the front A/F sensor 6P connector (A), then remove the A/F sensor (B).





2. Install the parts in the reverse order of removal.

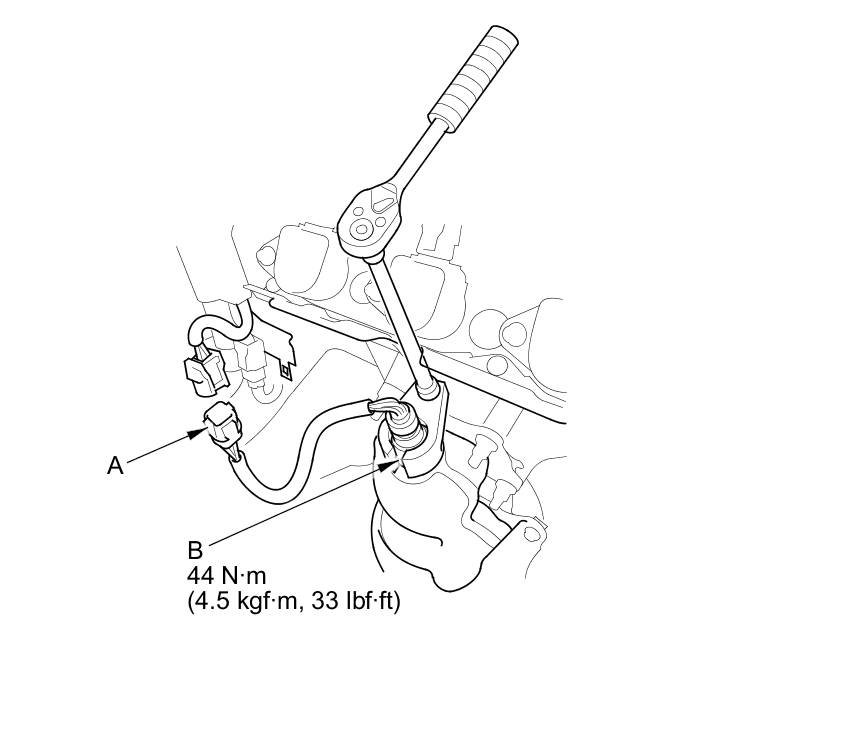

Rear Bank (Bank1)

1. Disconnect the rear A/F sensor 6P connector (A), then remove the A/F sensor (B).





2. Install the parts in the reverse order of removal.
