Connecting Rod, Engine

Connecting rod

Connecting rod





Connecting Rod Bolts

Inspection

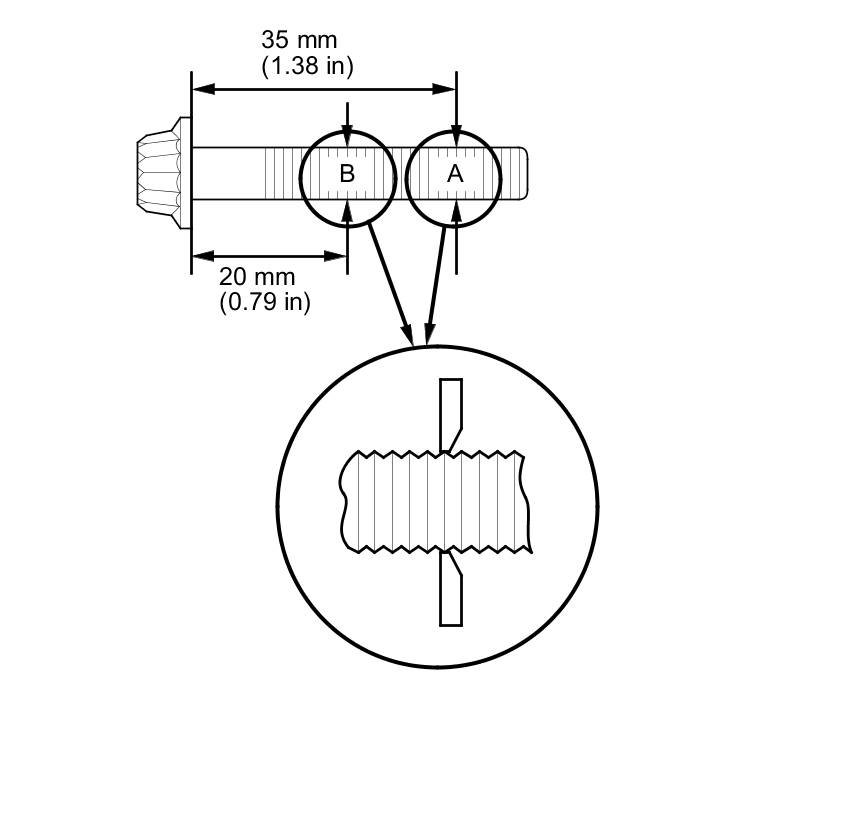

Measure the diameter of each connecting rod bolt at point A and point B.





Calculate the difference in diameter between point A and point B.

Point A - Point B = Difference in Diameter





If the difference in diameter is out of specification, replace the connecting rod bolt.

Tightening Specifications
First pass 20 Nm (2.0 kg-m, 14 lb-ft)
Final pass Tighten 90°
