Intake Manifold

Injector Base Fasteners 22 N-m (2.2 kgf-m, 16 lbf-ft)
Tighten the injector base mounting bolts/nuts in a crisscross pattern in three steps, beginning with the inner nuts.

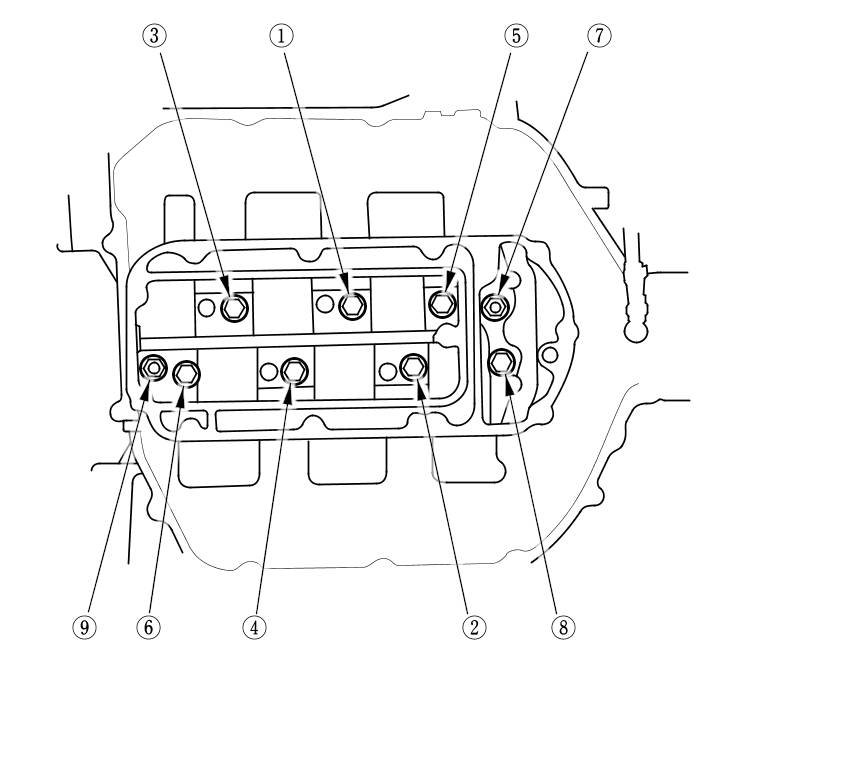

Intake Manifold Fasteners 22 Nm (2.2 kg-m, 16 lb-ft)
Tighten the bolts and nuts sequentially in three steps.

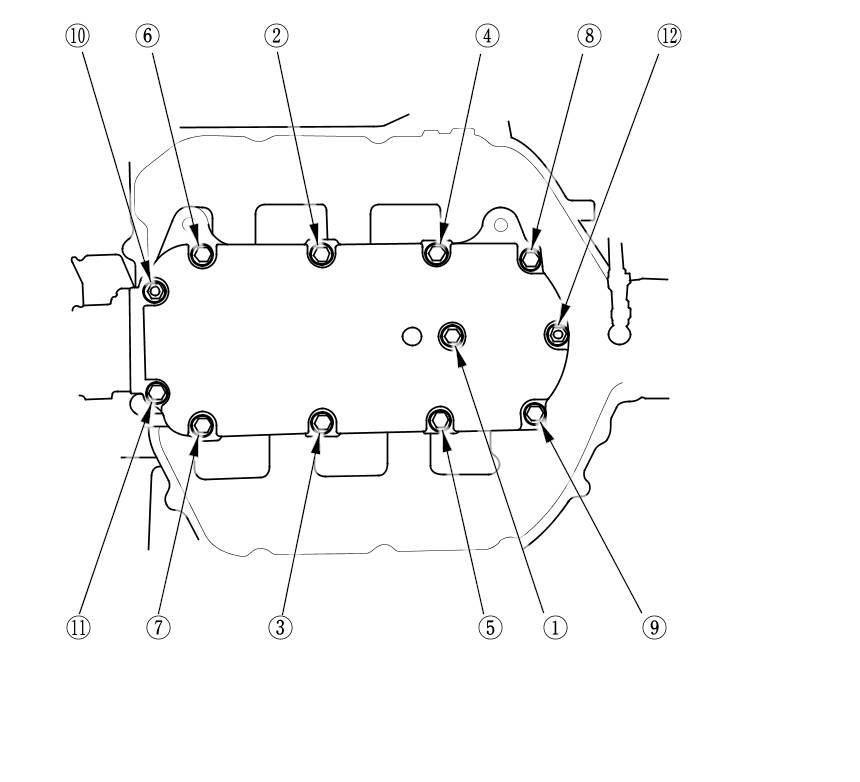

Intake Manifold Upper Cover Fasteners 12 Nm (1.2 kg-m, 8.8 lb-ft)
Tighten the bolts and nuts sequentially in three steps.
