Ignition Switch Knob Replacement

Ignition Switch Knob Replacement

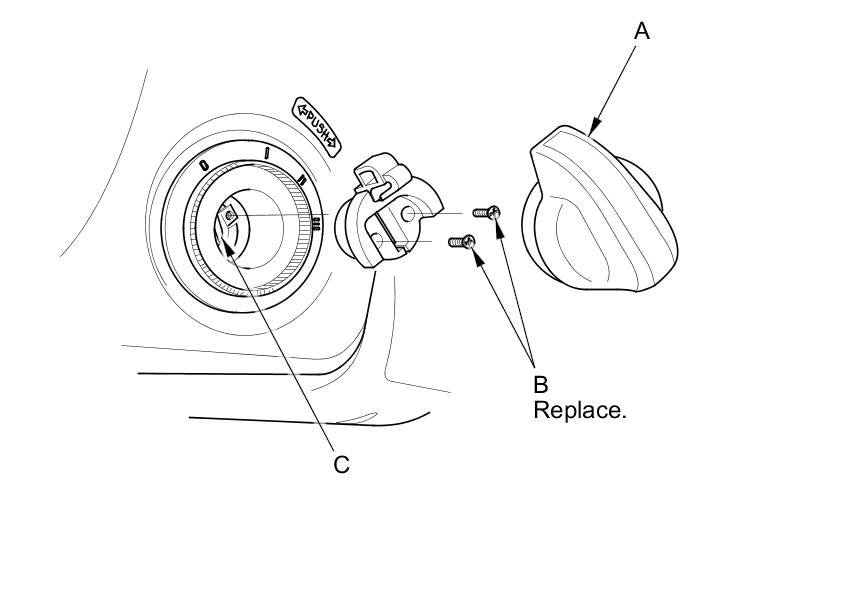

1. Remove the ignition switch knob (A). Then remove the two screws (B) and lower knob portion from the ignition key cylinder (C).





2. Replace the screws with new ones, and install the knob in the reverse order of removal.
