Ignition Key Switch Test

Ignition Key Switch Test

NOTE: SRS components are located in this area. Review the SRS component locations Locations, and precautions and procedures Service and Repair before doing repairs or servicing.

1. Remove the driver's dashboard undercover Driver's Dashboard Undercover Removal / Installation and the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal / Installation, then remove the steering column covers Steering Column Removal/Installation.

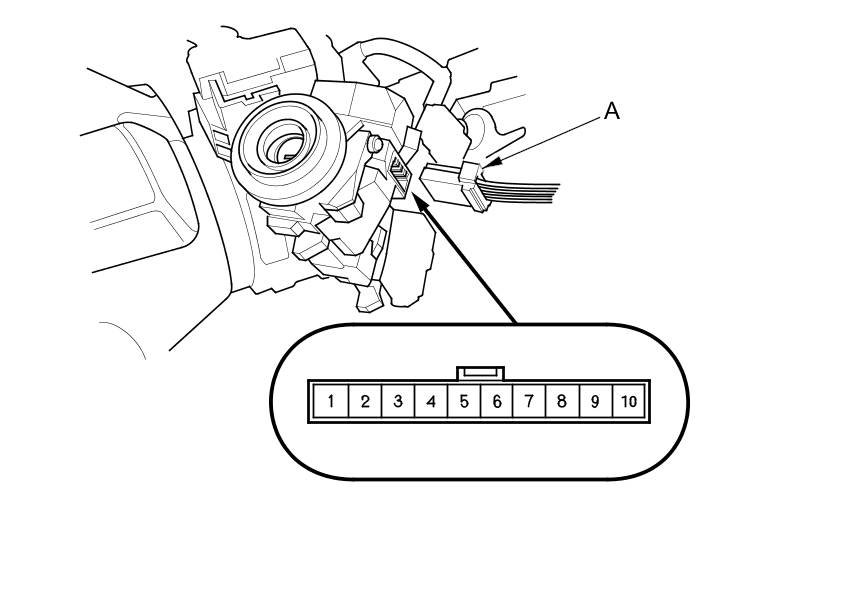

2. Disconnect the 10P connector (A) from the ignition switch control unit.

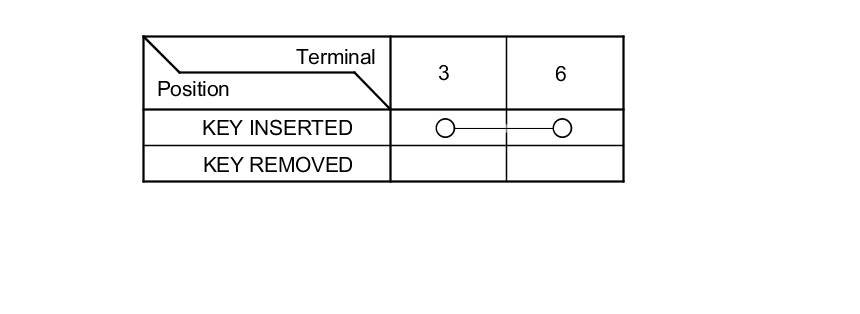

3. Check for continuity between the terminals in each door position according to the table.





4. If the continuity is not as specified, faulty ignition switch control unit; replace the steering lock assembly Service and Repair.

5. Do the Ignition Switch Control Unit Registration Testing and Inspection.
