Washer Fluid Level Switch Test

Washer Fluid Level Switch Test

1. Pull back the front section of the right front inner fender Front Inner Fender Replacement.

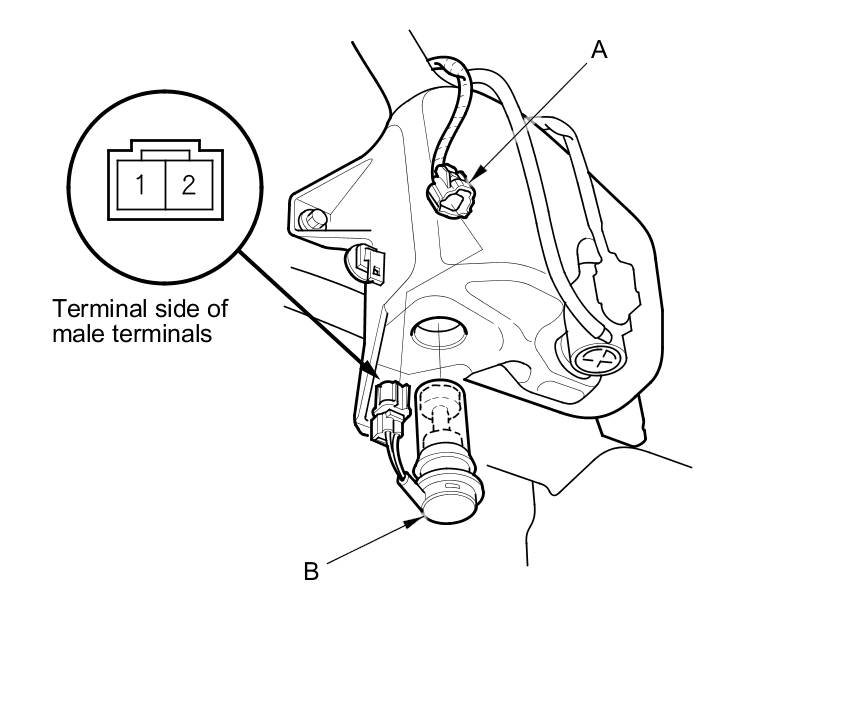

2. Disconnect the 2P connector (A) from the washer fluid level switch (B).





3. Remove the washer fluid level switch from the reservoir.

NOTE: Fluid may flow out of the opening.

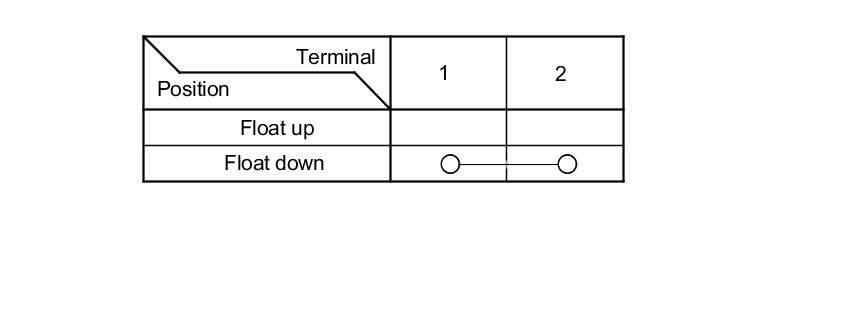

4. Check for continuity between the terminals No. 1 and No. 2 in each float position according to the table.





5. If the continuity is not as specified, replace the switch.
