Power Mirror Switch Test/Replacement

  1. Carefully pry the switch panel out from the dashboard.
  2. Disconnect the 10P connector (A) from the power mirror switch (B).

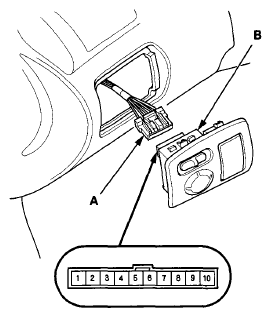

    Fig 1: Disconnecting 10P Connector From Power Mirror Switch
    G07355167Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the table.

    Mirror Switch:

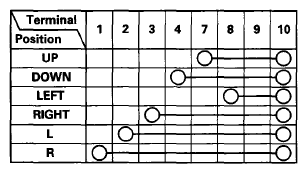

    Fig 2: Checking Continuity Between Terminals
    G07355168Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, replace the power mirror switch.
