Power Tilt/Telescopic Steering Motor Test

Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ), and the driver's dashboard lower cover (see INSTRUMENT FASCIA REMOVAL/INSTALLATION ), then remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
Disconnect the 6P connector and 8P connector from the power tilt/telescopic steering motors.

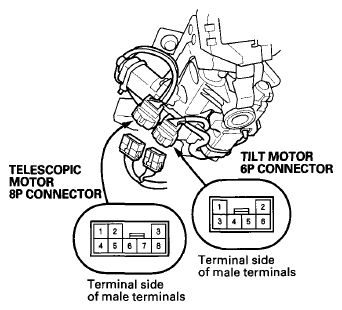

Fig 1: Disconnecting 6P Connector And 8P Connector From Power Tilt/Telescopic Steering Motors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check each motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.
Tilt motor

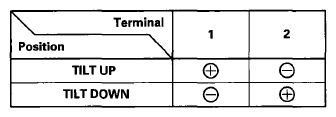

Fig 2: Terminals Position Reference Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Telescopic motor

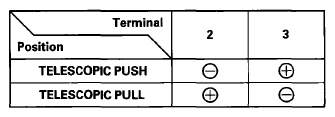

Fig 3: Terminals Position Reference Chart - Telescopic Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly; replace the steering column assembly (see STEERING COLUMN REMOVAL AND INSTALLATION ).
