Motor Test

Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 6P connector (A) from the power window motor.

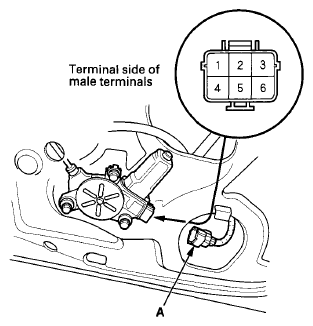

Fig 1: Disconnecting 6P Connector From Power Window Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the motor in each direction by connecting battery power and ground according to the table. When the motor stops running, disconnect one lead immediately.

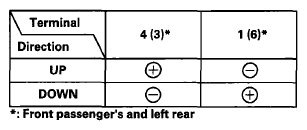

Fig 2: Terminal Position Reference Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace it.
