Fuse-to-Components Index

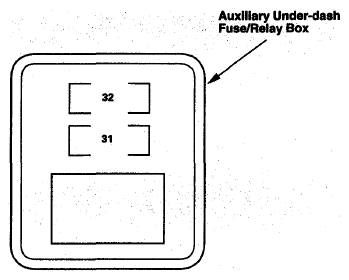

Fig 1: Auxiliary Under-Dash Fuse/Relay Box (6-10)

Fuse Number	Fuse Name	Amps	See	Component or Circuit Protected
31	STS	7.5A	UNDER-HOOD FUSE/RELAY BOX - MULTI-FUSE 23, IGNITION SWITCH, DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSE 33, AND AUXILIARY UNDER-DASH FUSE/RELAY BOX - FUSES 31 AND 32	PCM
32	STARTER DIAG	7.5A	UNDER-HOOD FUSE/RELAY BOX - MULTI-FUSE 23, IGNITION SWITCH, DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSE 33, AND AUXILIARY UNDER-DASH FUSE/RELAY BOX - FUSES 31 AND 32	PCM
