Connector-to-Fuse/Relay Box Index

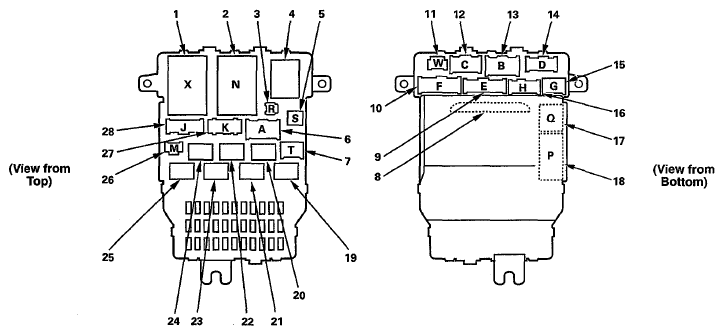

Fig 1: Driver's Under-dash Fuse/Relay Box (6-3)
G07748067
Ref Socket Cavities Connects to
1 X 39 Dashboard Wire Harness (Left Branch) (see DASHBOARD WIRE HARNESS (LEFT BRANCH) )
2 N 45 Dashboard Wire Harness (Left Branch) (see DASHBOARD WIRE HARNESS (LEFT BRANCH) )
3 R (MES Connector) 2 (Not used)
4 Turn Signal/Hazard Relay 1 6
5 S 2 Dashboard Wire Harness (Left Branch) (see DASHBOARD WIRE HARNESS (LEFT BRANCH) )
6 A 6 Dashboard Wire Harness (Left Branch) (see DASHBOARD WIRE HARNESS (LEFT BRANCH) )
7 T 6 Dashboard Wire Harness (Left Branch) (see DASHBOARD WIRE HARNESS (LEFT BRANCH) )
8 MICU 25 (Plugs directly into the fuse/relay box)
9 E 16 Left Side Wire Harness (Front Branch) (see LEFT SIDE WIRE HARNESS (FRONT BRANCH) )
10 F 14 Left Side Wire Harness (Front Branch) (see LEFT SIDE WIRE HARNESS (FRONT BRANCH) )
11 W 5 Left Side Wire Harness (Front Branch) (see LEFT SIDE WIRE HARNESS (FRONT BRANCH) )
12 C 12 Engine Compartment Wire Harness (Dash Branch) (see ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) )
13 B 6 Engine Compartment Wire Harness (Dash Branch) (see ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) )
14 D 17 Engine Compartment Wire Harness (Dash Branch) (see ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) )
15 G 6 Left Side Wire Harness (Front Branch) (see LEFT SIDE WIRE HARNESS (FRONT BRANCH) )
16 H 14 Left Side Wire Harness (Front Branch) (see LEFT SIDE WIRE HARNESS (FRONT BRANCH) )
17 Q (MICU) 14 Left Side Wire Harness (Front Branch) (see LEFT SIDE WIRE HARNESS (FRONT BRANCH) )
18 P (MICU) 30 Dashboard Wire Harness (Left Branch) (see DASHBOARD WIRE HARNESS (LEFT BRANCH) )
19 Starter Cut Relay 2 4
20 Accessory Power Socket Relay 4
21 A/F Sensor Relay 4
22 PGM-FI Main Relay 1 4
23 Not Used
24 Ignition Coil Relay 4
25 PGM-FI Main Relay 2 4
26 M (MICU Service Check Connector) 3
27 K 12 Driver's Door Sub-harness (see DRIVER'S DOOR SUB-HARNESS )
28 J 21 Left Side Wire Harness (Front Branch) (see LEFT SIDE WIRE HARNESS (FRONT BRANCH) )

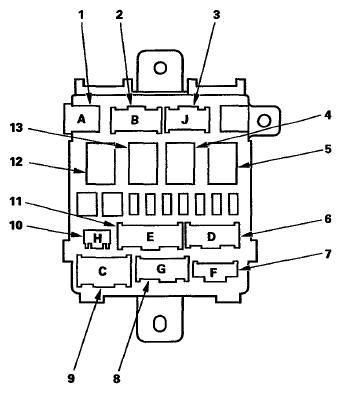

Fig 1: Passenger's Under-Dash Fuse/Relay Box (6-5)
G07748069
Ref Socket Cavities Connects to
1 A 1 Engine Compartment Wire Harness (Right Branch) (see ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) )
2 B 10 Engine Compartment Wire Harness (Right Branch) (see ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) )
3 J 13 Engine Compartment Wire Harness (Right Branch) (see ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) )
4 Front Seat Heater Relay 4
5 Fuel Fill Door Opener Relay 4
6 D 17 Dashboard Wire Harness (Right Branch) (see DASHBOARD WIRE HARNESS (RIGHT BRANCH) )
7 F 8 Right Side Wire Harness (Front Branch) (see RIGHT SIDE WIRE HARNESS (FRONT BRANCH) )
8 G 14 Right Side Wire Harness (Front Branch) (see RIGHT SIDE WIRE HARNESS (FRONT BRANCH) )
9 C 5 Right Side Wire Harness (Front Branch) (see RIGHT SIDE WIRE HARNESS (FRONT BRANCH) )
10 H 3 Dashboard Wire Harness (Right Branch) (see DASHBOARD WIRE HARNESS (RIGHT BRANCH) )
11 E 14 Dashboard Wire Harness (Right Branch) (see DASHBOARD WIRE HARNESS (RIGHT BRANCH) )
12 Headlight Washer Relay (Canada, Mexico) 4
13 ETCS Control Relay 4
