Fuse-to-Components Index

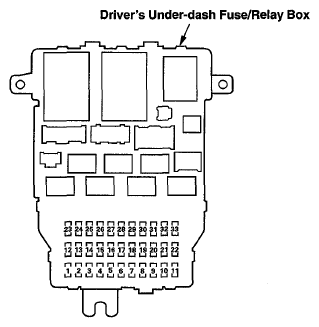

Fig 1: Driver's Under-dash Fuse/Relay Box (6)

G07748064

Fuse Number	Fuse Name	Amps	See	Component or Circuit Protected
1	DBW	15A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 1, 3, AND 15	ETCS Control Relay
2	IGN COIL	15A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 2 AND 23	Ignition Coil Relay
3	DAY LIGHT	10A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 1, 3, AND 15	DRL Control Unit (USA, Mexico), DRL Relay (Canada) in Auxiliary Under-hood Relay Box, MICU
4	LAF	15A	10	A/F Sensor Relay
5	RADIO	7.5A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 5 AND 6	Active Noise Cancellation Unit, AcuraLink Control Unit (XM Receiver) (USA: Technology Package, Advance Package), AcuraLink Connector (USA: Technology Package, Advance Package), Audio Unit, HandsFreeLink Control Unit, Navigation Unit
6	INTR LIGHT	7.5A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 5 AND 6 , DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSE 6	Driver's Footwell Light, Driver's Vanity Mirror Light, Front Passenger's Footwell Light, Front Passenger's Vanity Mirror Light, Keyless Access Control Unit, Left Rear Door Courtesy Light, Left Rear Door Inner Handle Light, Left Rear Power Window Switch, Rear Individual Map Lights, Right Rear Door Courtesy Light, Right Rear Door Inner Handle Light, Right Rear Power Window Switch, Roof Console, Trunk Light A, Trunk Light B
7	BACK UP	10A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 7 AND 8	ACC Unit (USA: Advance Package; Canada: Elite Package), DLC, Driver's Door Outer Handle Light/Touch Sensor, Driver's MPCS Unit, Driver's Power Seat Control Unit, Fog Light Relay, Front Passenger's Door Outer Handle Light/Touch Sensor, Front Passenger's MPCS Unit, Fuel Fill Door Opener Relay, Gauge Control Module, Ignition Switch Control Unit, Immobilizer Control Unit-Receiver, Imoes Unit, Keyless Access Control Unit, MICU, Navigation Display Unit, Power Tilt/Telescopic Steering Control Unit, Wiper/Washer Switch
8	DOOR LOCK	20A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 7 AND 8	MICU
9	ACC SOCKET	20A	UNDER-HOOD FUSE/RELAY BOX - FUSES 7, 8, 10, 14, 15, 21, AND DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSE 9	Accessory Power Socket Relay
10	OPDS	7.5A	DRIVER'S UNDER-DASH FUSE/RELAY BOX- FUSES 10, 11, 19, 20, AND 22	Hazard Warning Switch/Front Passenger's Airbag Cut-off Indicator, ODS Unit, SRS Unit

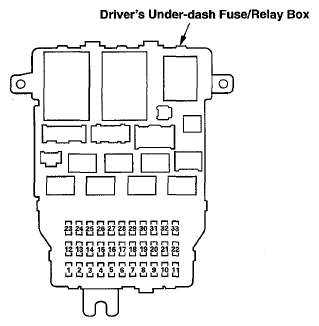

Fig 2: Driver's Under-dash Fuse/Relay Box (6-1)

G07748065

Fuse Number	Fuse Name	Amps	See	Component or Circuit Protected
11	WIPER	15A	DRIVER'S UNDER-DASH FUSE/RELAY BOX- FUSES 10, 11, 19, 20, AND 22	Adaptive Front Lighting Control Unit (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico), Power Rear Window Sunshade Control Unit, Windshield Washer Motor, Windshield Wiper Motor Relay
12	RR H/SEAT	15A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 12, 13, 14, 16, AND 17	Rear Seat Heater Relay (Canada) in Passenger's Auxiliary Under-dash Relay Box
13	AS P/SEAT (REC)	20A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 12, 13, 14, 16, AND 17	Front Passenger's Power Seat Adjustment Switch
14	DR P/SEAT (SLIDE)	20A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 12, 13, 14, 16, AND 17	Driver's Lumbar Support Switch, Driver's Power Seat Control Unit
15	TPMS	7.5A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 1, 3, AND 15	TPMS Control Unit
16	DR P/SEAT (REC)	20A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 12, 13, 14, 16, AND 17	Driver's Power Seat Control Unit
17	AS P/SEAT (SLIDE)	20A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 12, 13, 14, 16, AND 17	Front Passenger's Lumbar Support Switch, Front Passenger's Power Seat Adjustment Switch
18	ACG	15A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 18, 29, AND 31	Alternator, Brake Pedal Position Switch, ELD Unit, Engine Mount Control Solenoid Valve, EVAP Canister Purge Valve, PCM, Steering Angle Sensor, VSA Modulator-Control Unit, Yaw Rate-Acceleration Sensor
19	FUEL PUMP	20A	DRIVER'S UNDER-DASH FUSE/RELAY BOX- FUSES 10, 11, 19, 20, AND 22	Imoes Unit, Keyless Access Control Unit, PCM, PGM-FI Main Relay 2
20	IGN SOL	15A	DRIVER'S UNDER-DASH FUSE/RELAY BOX- FUSES 10, 11, 19, 20, AND 22	MAF/IAT Sensor, PCM
21	METER	10A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSE 21 , DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSE 21	AcuraLink Control Unit (XM Receiver) (USA: Technology Package, Advance Package), Automatic Dimming Inside Mirror, Control Block, Driver's MPCS Unit, Driver's Power Seat Control Unit, Driver's Seat Belt Tension Reducer Solenoid, Driver's Seat Ventilation Control Unit (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico), Driver's Seat Ventilation Switch (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico), DRL Control Unit (USA, Mexico), ECPS Control Unit, Front Passenger's Seat Belt Tension Reducer Solenoid, Front Passenger's Seat Ventilation Control Unit (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico), Front Passenger's Seat Ventilation Switch (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico), Gauge Control Module, MICU, Power Tilt/Telescopic Steering Control Unit, Relay Control Module, Shift Lock Solenoid, TPMS Control Unit, Wiper/Washer Switch

Fig 3: Driver's Under-dash Fuse/Relay Box (6-2)

G07748066

Fuse Number	Fuse Name	Amps	See	Component or Circuit Protected
22	SRS	10A	DRIVER'S UNDER-DASH FUSE/RELAY BOX- FUSES 10, 11, 19, 20, AND 22	SRS Unit
23	IGP	7.5A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 2 AND 23	A/F Sensor Relay, RFC Unit Relay in Auxiliary Under-hood Relay Box
24	P/W RR-L	20A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 2 AND 23	Left Rear Power Window Switch
25	ETS (TELESCOPIC)	20A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 2 AND 23	Power Tilt/Telescopic Steering Control Unit
26	ETS (TILT)	20A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 2 AND 23	Power Tilt/Telescopic Steering Control Unit
27	P/W DR	30A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 2 AND 23	Driver's MPCS Unit
28	SUN ROOF	20A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 2 AND 23	Moonroof Control Unit
29	AFS	7.5A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 18, 29, AND 31	ACC Relay (USA: Advance Package; Canada: Elite Package) in Auxiliary Under-hood Relay Box, ACC Unit (USA: Advance Package; Canada: Elite Package), Adaptive Front Lighting Control Unit (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico), Headlight Leveling Control Unit (USA: Base; Canada: Base), Millimeter Wave Radar Unit (USA: Advance Package; Canada: Elite Package), SH-AWD Control Unit
30	A/C	7.5A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSE 30 AND UNDER-HOOD FUSE/RELAY BOX - FUSE 2	A/C Compressor Clutch Relay, Blower Motor Relay, Climate Control Unit, Front Seat Heater Relay, In-car Temperature Sensor, MICU, Rear Seat Heater Relay (Canada) in Passenger's Auxiliary Under-dash Relay Box, Rear Window Defogger Relay
31	E-PT	7.5A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSES 18, 29, AND 31	E-pretensioner Unit (USA: Advance Package; Canada: Elite Package)
32	ACC	10A	DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSE 32	ACC Cut Relay in Driver's Auxiliary Under-dash Relay Box, Accessory Power Socket Relay, Active Noise Cancellation Front Microphone, Active Noise Cancellation Rear Microphone, AcuraLink Control Unit (XM Receiver) (USA: Technology Package, Advance Package), Audio Unit, HandsFreeLink Control Unit, Ignition Switch Control Unit, Interface Dial, Keyless Access Control Unit, MICU, Navigation Display Unit, Navigation Unit, Roof Console
33	-	-	UNDER-HOOD FUSE/RELAY BOX - MULTI-FUSE 23, IGNITION SWITCH, DRIVER'S UNDER-DASH FUSE/RELAY BOX - FUSE 33, AND AUXILIARY UNDER-DASH FUSE/RELAY BOX - FUSES 31 AND 32	Not Used

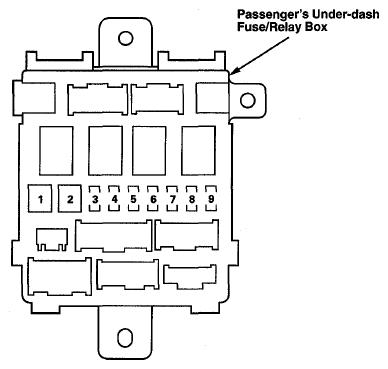

Fig 1: Passenger's Under-Dash Fuse/Relay Box (6-4)

G07748068

Fuse Number	Fuse Name	Amps	See	Component or Circuit Protected
1	SH-AWD	30A	PASSENGER'S UNDER-DASH FUSE/RELAY BOX - FUSES 1, 2, 3, 4, 5, 6, 8, AND 9	SH-AWD Relay
2	PREMIUM AMP	30A	PASSENGER'S UNDER-DASH FUSE/RELAY BOX - FUSES 1, 2, 3, 4, 5, 6, 8, AND 9	Stereo Amplifier
3	P/WAS	30A	PASSENGER'S UNDER-DASH FUSE/RELAY BOX - FUSES 1, 2, 3, 4, 5, 6, 8, AND 9	Front Passenger's MPCS Unit
4	E-PT L	30A	PASSENGER'S UNDER-DASH FUSE/RELAY BOX - FUSES 1, 2, 3, 4, 5, 6, 8, AND 9	E-pretensioner Unit (USA: Advance Package; Canada: Elite Package)
5	P/W RR-R	20A	PASSENGER'S UNDER-DASH FUSE/RELAY BOX - FUSES 1, 2, 3, 4, 5, 6, 8, AND 9	Right Rear Power Window Switch
6	FR H/SEAT	20A	PASSENGER'S UNDER-DASH FUSE/RELAY BOX - FUSES 1, 2, 3, 4, 5, 6, 8, AND 9	Front Seat Heater Relay
7	ILLUMI	7.5A	PASSENGER'S UNDER-DASH FUSE/RELAY BOX - FUSE 7 , PASSENGER'S UNDER-DASH FUSE/RELAY BOX - FUSE 7 and PASSENGER'S UNDER-DASH FUSE/RELAY BOX - FUSE 7	A/T Gear Position Indicator Panel Light, AFS OFF/VSA OFF Switch (USA: Hawaii, Technology Package; Mexico), AFS OFF/VSA OFF/CMBS OFF Switch (USA: Advance Package; Canada: Elite Package), Audio Remote Switch, Audio Unit, Cable Reel, Cigarette Lighter Light (Mexico), Climate Control Unit, Coin Pocket Light, Console Box Light, Cruise Control Combination Switch, Dash Lights Brightness Controller, Distance Switch (USA: Advance Package; Canada: Elite Package), Driver's Seat Heater Switch (USA: Base; Canada: Base), Driver's Seat Ventilation Switch (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico), Front Passenger's Seat Heater Switch (USA: Base; Hawaii; Canada: Base), Front Passenger's Seat Ventilation Switch (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico), Glove Box Light, Hazard Warning Switch/Front Passenger's Airbag Cut-off Indicator, Headlight Washer Switch (Canada, Mexico), HFL Switch, Left Rear Seat Heater Switch (Canada), Navigation Display Unit, Paddle Shifter - (Downshift Switch), Paddle Shifter + (Upshift Switch), Power Mirror Switch, Right Rear Seat Heater Switch (Canada), Select/Reset/Information Switch, Voice Control Switch, VSA OFF Switch (USA: Base; Canada: Base)
8	E-PT R	30A	PASSENGER'S UNDER-DASH FUSE/RELAY BOX - FUSES 1, 2, 3, 4, 5, 6, 8, AND 9	E-pretensioner Unit (USA: Advance Package; Canada: Elite Package)
9	A/C	7.5A	PASSENGER'S UNDER-DASH FUSE/RELAY BOX - FUSES 1, 2, 3, 4, 5, 6, 8, AND 9	HVAC Control Motor Relay
