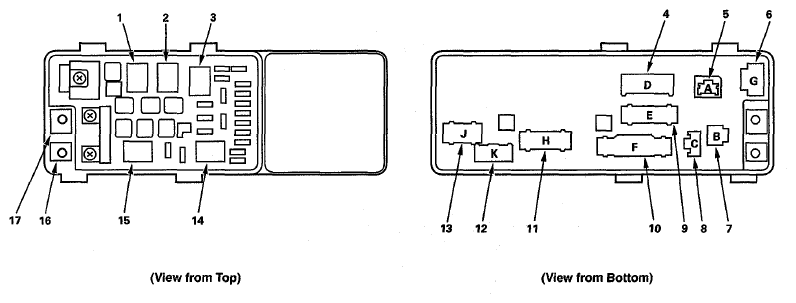

| 1 |
Blower Motor Relay |
4 |
|
| 2 |
A/C Compressor Clutch Relay |
4 |
|
| 3 |
Rear Window Defogger Relay |
4 |
|
| 4 |
D |
9 |
Engine Compartment Wire Harness (Left Branch) (see
ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
) |
| 5 |
A (ELD Unit) |
3 |
Engine Compartment Wire Harness (Left Branch) (see
ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
) |
| 6 |
G |
2 |
Engine Compartment Wire Harness (Left Branch) (see
ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
) |
| 7 |
B |
1 |
Engine Compartment Wire Harness (Left Branch) (see
ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
) |
| 8 |
C |
2 |
Engine Compartment Wire Harness (Left Branch) (see
ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
) |
| 9 |
E |
16 |
Engine Compartment Wire Harness (Left Branch) (see
ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
) |
| 10 |
F |
20 |
Engine Compartment Wire Harness (Left Branch) (see
ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
) |
| 11 |
H |
14 |
Engine Compartment Wire Harness (Left Branch) (see
ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
) |
| 12 |
K |
5 |
Engine Compartment Wire Harness (Left Branch) (see
ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
) |
| 13 |
J |
10 |
Engine Compartment Wire Harness (Left Branch) (see
ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
) |
| 14 |
Fog Light Relay |
4 |
|
| 15 |
Windshield Wiper Motor Relay |
4 |
|
| 16 |
T1 |
|
Starter Cable (see
STARTER CABLE
) |
| 17 |
T101 |
|
Engine Wire Harness (Front Branch) (see
ENGINE WIRE HARNESS (FRONT BRANCH)
) |
