Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System
>>
Alternator Overhaul
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

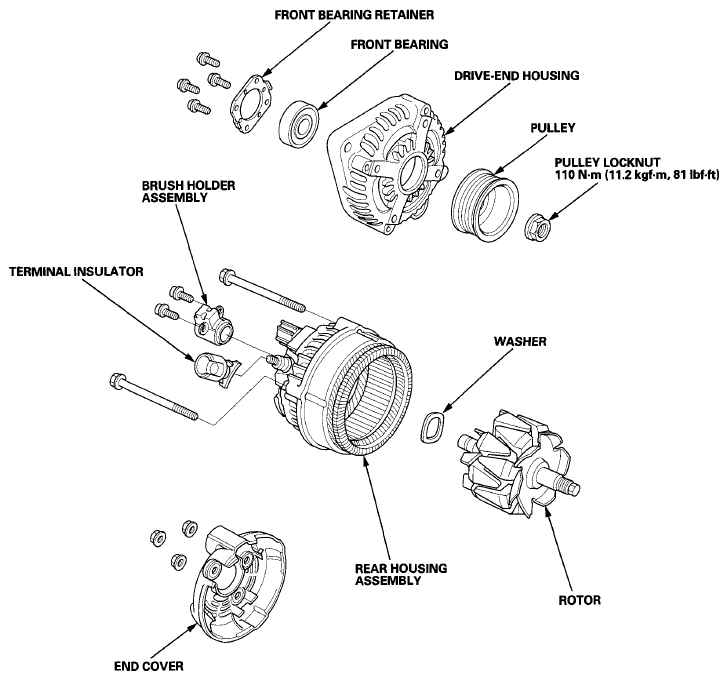

Fig 1: Exploded View Of Alternator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
