Drive Belt Auto-Tensioner Replacement

  1. Remove the drive belt (see DRIVE BELT REPLACEMENT ).
  2. Remove the splash shield (see SPLASH SHIELD REPLACEMENT )
  3. Remove the auto-tensioner.

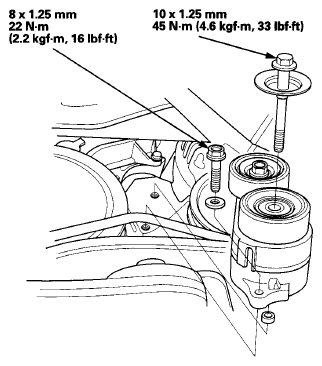

    Fig 1: Auto-Tensioner With Torque Specifications
    G07353494Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the auto-tensioner in the reverse order of removal.
