Drive Belt Inspection

Remove the right upper fender trim (see UPPER FENDER TRIM REPLACEMENT ).
Inspect the belt for cracks or damage. If the belt is cracked or damaged, replace it (see DRIVE BELT REPLACEMENT ).
Check that the position the auto-tensioner indicator (A) is within the standard range (B) as shown. If it is out of the standard range, replace the drive belt (see DRIVE BELT REPLACEMENT ).

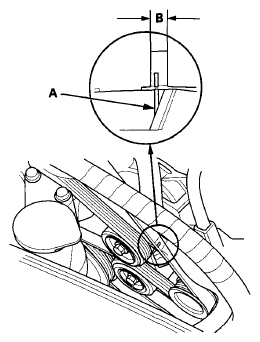

Fig 1: Checking Position Auto-Tensioner Indicator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the right upper fender trim (see UPPER FENDER TRIM REPLACEMENT ).
