Roof and Trunk

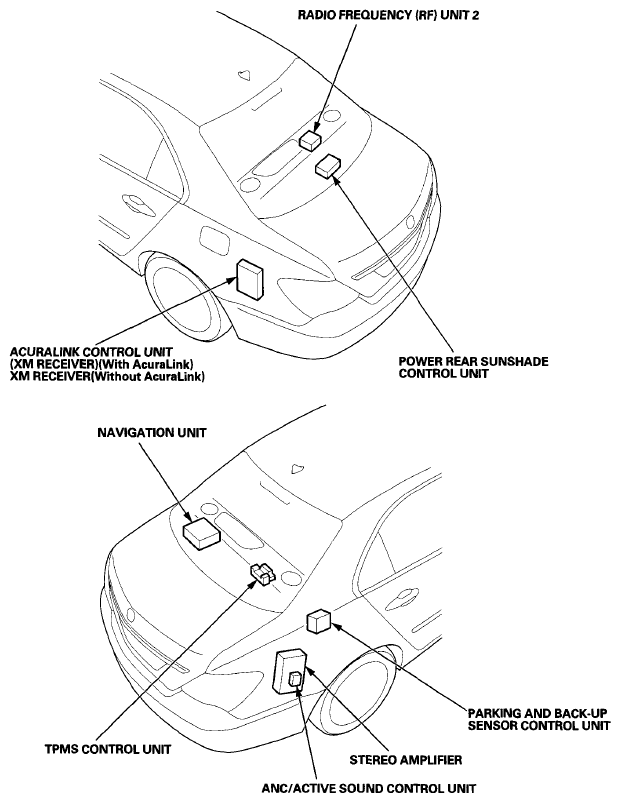

Fig 1: Identifying Relay And Control Unit Locations - Roof And Trunk (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Identifying Relay And Control Unit Locations - Roof And Trunk (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
