Relays And Control Unit Locations: Seat

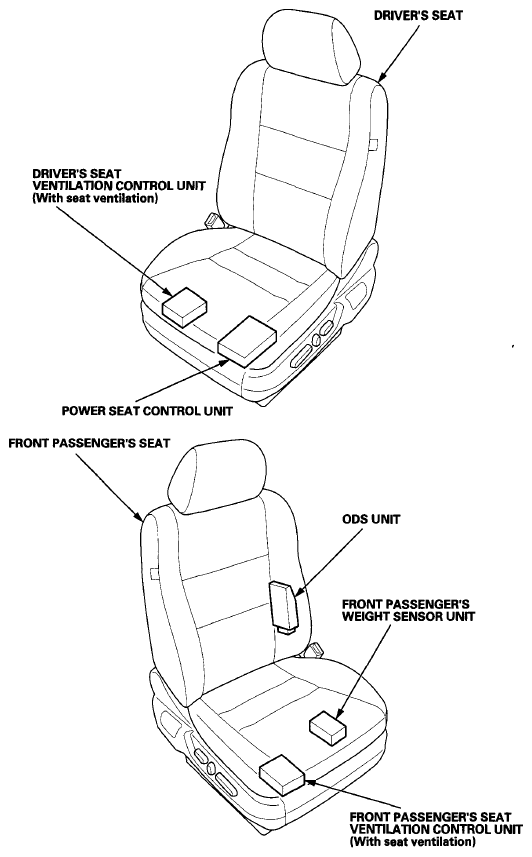

Fig 1: Identifying Relay And Control Unit Locations - Seat
G07354837Courtesy of AMERICAN HONDA MOTOR CO., INC.
