Exploded View

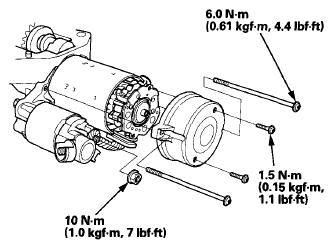

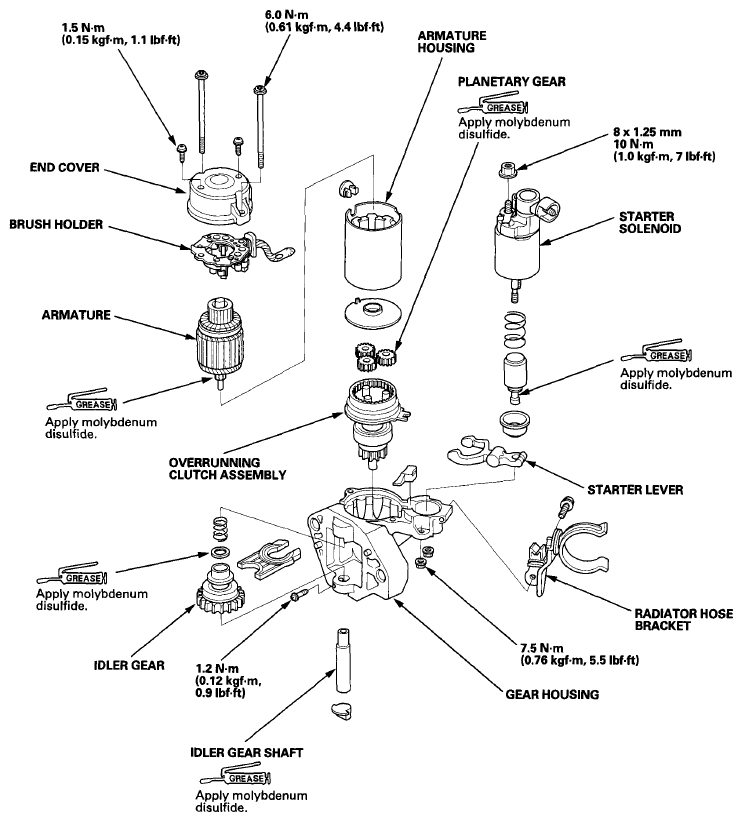

Fig 1: Exploded View Of Starter With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Refer to the EXPLODED VIEW if needed during this procedure.

Remove the starter (see STARTER REMOVAL AND INSTALLATION ).
Brush Holder Removal

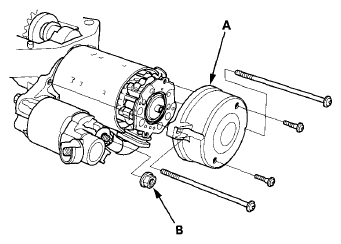

Remove the end cover (A) and the M terminal nut (B).

Fig 2: Removing End Cover And M Terminal Nut
Courtesy of AMERICAN HONDA MOTOR CO., INC.

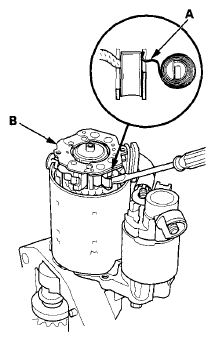

Pry back each brush spring (A) with a screwdriver, then position the brush on the brush holder about halfway out of its holder. Release the spring to hold it in place.

Fig 3: Prying Back Brush Spring With Screwdriver
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the brush holder (B).
Armature Inspection and Test
Inspect the armature for wear or damage from contact with the permanent magnet. If there is wear or damage, replace the armature.

Fig 4: Removing Brush Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.

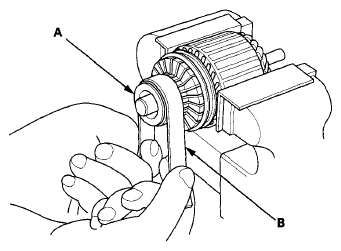

Check the commutator (A) surface. If the surface is dirty or burnt, resurface it with an emery cloth or a lathe to the specifications in step 7, or recondition with #500 or #600 sandpaper (B).

Fig 5: Inspecting Commutator Surface
Courtesy of AMERICAN HONDA MOTOR CO., INC.

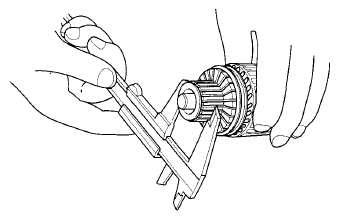

Check the commutator diameter with a digital caliper or dial type caliper. If the diameter is below the service limit, replace the armature.
Commutator Diameter

Standard (New): 28.9-29.0 mm (1.138-1.142 in)

Service Limit: 28.0 mm (0.1102 in)

Fig 6: Checking Commutator Diameter With Digital Caliper
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the commutator (A) runout.
- If the commutator runout is within the service limit, check the commutator for carbon dust or brass chips between the segments.
- If the commutator runout is not within the service limit, replace the armature.
Commutator Runout

Standard (New): 0.02 mm (0.0008 in) max.

Service Limit: 0.05 mm (0.0020 in)

Fig 7: Measuring Commutator Runout
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Use a digital caliper or dial type caliper to check the mica depth (A). If the mica depth is below the service limit, replace the armature.
Commutator Mica Depth

Standard (New): 0.50-0.90 mm (0.0197-0.0354 in)

Service Limit: 0.20 mm (0.0079 in)

Fig 8: Checking Mica Depth
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Use an ohmmeter to check for continuity between the segments of the commutator. If there is an open circuit between any segments, replace the armature.

Fig 9: Checking Continuity Between Segments Of Commutator
Courtesy of AMERICAN HONDA MOTOR CO., INC.

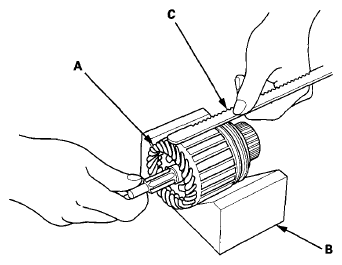

Place the armature (A) on an armature tester (B). Hold a hacksaw blade (C) on the armature core. If the blade is attracted to the core while the core is turned, the armature is shorted. Replace the armature.

Fig 10: Holding Hacksaw Blade On Armature Core
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Use an ohmmeter to check for continuity between the commutator (A) and the armature coil core (B), and between the commutator and the armature shaft (C). If there is continuity, replace the armature.

Fig 11: Checking Continuity Between Commutator And Armature Coil Core
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Overrunning Clutch Inspection
Slide the overrunning clutch (A) along the shaft. Replace it if it does not slide smoothly.

Fig 12: Sliding Overrunning Clutch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Hold the overrunning clutch (A), and turn the drive gear (B) in the direction shown to make sure it turns freely. Also make sure the drive gear locks in the opposite direction. If it does not lock, replace the overrunning clutch assembly.

Fig 13: Holding Overrunning Clutch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the starter drive gear is worn or damaged, replace the overrunning clutch assembly; the gear is not available separately. Check the condition of the idler gear and the torque converter ring gear. Replace it if the starter drive gear teeth are damaged.
Starter Brush Inspection
Measure the brush length. If it is shorter than the service limit, replace the brush holder assembly.
Brush Length

Standard (New): 15.0-16.0 mm (0.591-0.630 in)

Service Limit: 9.0 mm (0.354 in)

Fig 14: Measuring Brush Length
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Starter Brush Holder Test

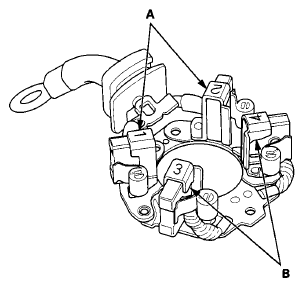

Check for continuity between the (+) brush holders (A) and the (-) brush holders (B). If there is continuity, replace the brush holder assembly.

Fig 15: Checking Continuity Between (+) Brush Holders And (-) Brush Holders
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Brush Spring Inspection

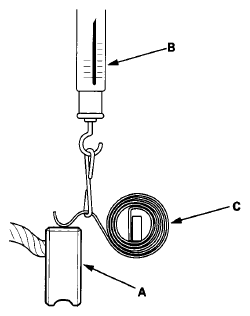

Insert the brush (A) into the brush holder, and bring the brush into contact with the commutator, then attach a spring scale (B) to the spring (C). Measure the spring tension at the moment the spring lifts off the brush. If it is not within the standard, replace the brush holder assembly.
Spring Tension

Standard (New): 22.3-27.3 N (2.27-2.78 kg, 5.00-6.13 lbs)

Fig 16: Inserting Brush Into Brush Holder And Bring Brush Into Contact With Commutator
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Planetary Gear Inspection

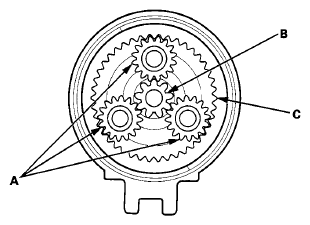

Check the planetary gears (A), the armature shaft gear (B), and the internal ring gear (C). Replace them if they are worn or damaged.

Fig 17: Checking Planetary Gears, Armature Shaft Gear And Internal Ring Gear
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Starter Reassembly

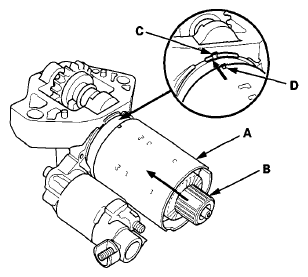

Install the armature housing (A) and the armature (B) by aligning the slotted point (C) to the projection (D).

Fig 18: Installing Armature Housing And Armature
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pry back each brush spring with a screwdriver, then position the brush on the brush holder about halfway out of its holder. Release the spring to hold it in place.
NOTE: To seat the new brushes. Slip a strip of # 500 or #600 sandpaper, with the grit side up, between the commutator and the each brush, and smoothly turn the armature. The contact surface of the brushes will be sanded to the same contour as the commutator.

Fig 19: Prying Back Brush Spring With Screwdriver
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the brush holder. Next pry back each brush spring again, and push each brush down until it seats against the commutator, then release the spring against the end of the brush.

Fig 20: Installing Brush Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the end cover to retain the brush holder.

Fig 21: Installing End Cover With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
