Sealing Bolt Installation

NOTE: When installing the sealing bolt (A), always use new washers (B).

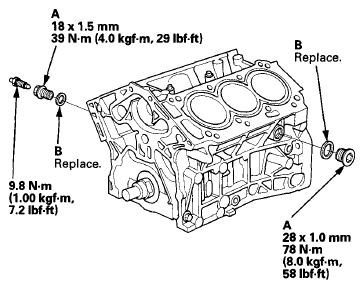

Fig 1: Sealing Bolt With Torque Specifications
G07361759Courtesy of AMERICAN HONDA MOTOR CO., INC.
